24v High Speed Bldc Motor 36mm Brushless Dc Motor 12v

1 / 5

24v High Speed Bldc Motor 36mm Brushless Dc Motor 12v

Send Inquiry

Product Description

24v High Speed BLDC Motor 36mm Brushless DC Motor 12v

⚙Product Application

This high-performance brushless motor is ideal for a variety of precise electrical operations and automation systems, including:

Automatic door operators
Automatic energy saving baths
Electrical controlled valves
Oxygen machines and medical services
Optical equipment and cameras
Automatic cordless power tools and lighting systems

✦Main Features

Compact Design: 36mm brushless motor size
Long Life & Quiet Operation: Engineered for low noise and long operational lifetime
Integrated Drive: Built-in drive, offering plug-and-play setup (power on, then work)
Full Function Control: Supports reverse rotation and braking control
Speed Management: Equipped with PWM speed control and FG signal feedback
Gearbox Compatibility: Can be customized and made available with a planetary gearbox

📊Technical Specifications

Model Code	Voltage Details	Speed Metrics	Torque & Current Metrics
TFC3640-1250 (Model Group: TEC3640)	Rated Voltage: 12VDC	Rated Speed: 4000 r/min	Output Power: 6.2W
	No-load Speed: 5000 r/min	Rated Torque: 150 g.cm	Stall Torque: 600 g.cm
	No-load Current: 750mA	Rated Current: 1000mA	Stall Current: 2.5A
TFC3640-1233	Rated Voltage: 12VDC	Rated Speed: 2400 r/min	Output Power: 6.2W
	No-load Speed: 3300 r/min	Rated Torque: 250 g.cm	Stall Torque: 880 g.cm
	No-load Current: 250mA	Rated Current: 1000mA	Stall Current: 2.5A
TFC3640-2433	Rated Voltage: 24VDC	Rated Speed: 2400 r/min	Output Power: 7.4W
	No-load Speed: 3300 r/min	Rated Torque: 300 g.cm	Stall Torque: 1650 g.cm
	No-load Current: 130mA	Rated Current: 500mA	Stall Current: 3.0A

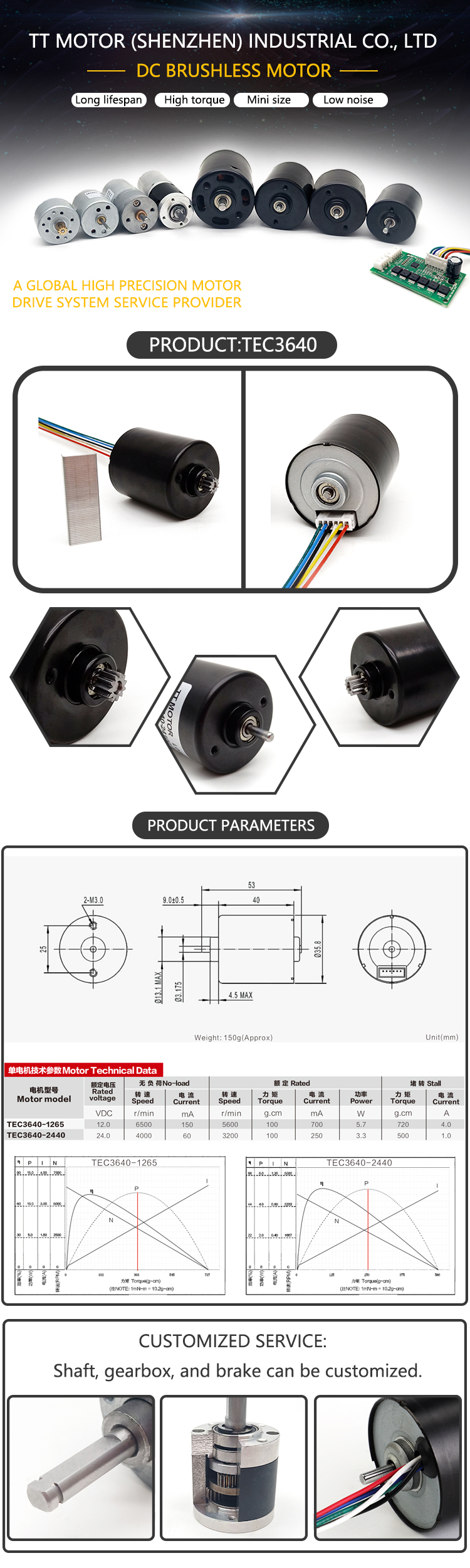

36mm Brushless DC Motor Technical Drawing

✔Extended Applications

This motor's versatile performance extends to robots, grass cutters, electric curtains, cameras, medical equipment, oxygen concentrators, and more.

Brushless DC Motor Applications Overview

⚙Application Sectors

Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video Systems	Cameras	Projectors	Optical Instruments
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers
