Product Description

GM12-15BY 15mm DC Gear Motor 5V

Main Features

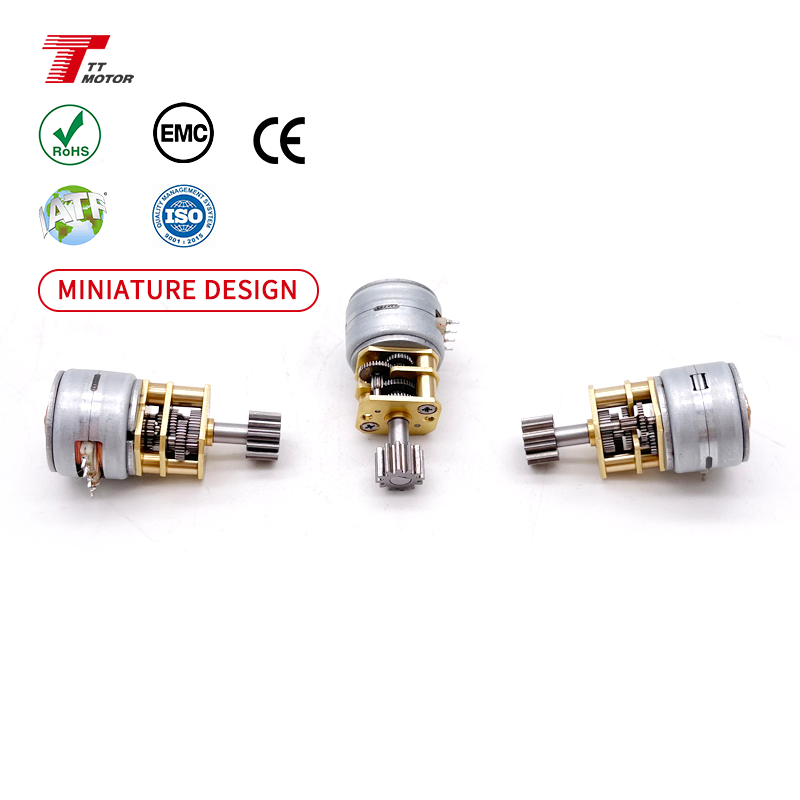

12*10mm gearbox plus 15mm dc gear motor 5v
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.05Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Reduction ratio: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380

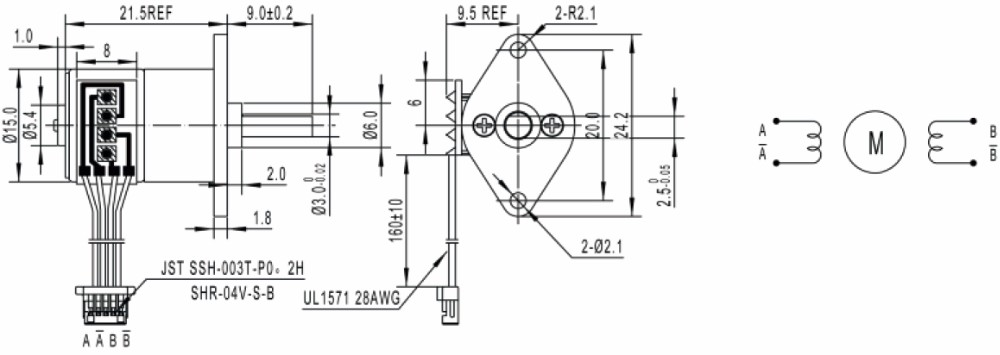

Motor Specifications (GM12-15BY)

Model	Rated Voltage	No. of Phases	Step Angle	Gear Ratio	Resistance	Holding Torque	Current	Pull-in Rate
GM12-15BY-30	5VDC	2	18°	1/30	10Ω	500g.cm	500mA	800pps
GM12-15BY-50	5VDC	2	18°	1/50	10Ω	700g.cm	500mA	850pps
GM12-15BY-110	5VDC	2	18°	1/110	10Ω	1050g.cm	500mA	850pps

Manufacturing & Quality Standards

Specializing in DC Gear Motors, Brushless DC Motors, Stepper Motors, and Coreless Motors since 2006.

These motors are designed to be quiet, high torque, and durable with numerous size options. They are widely used in robotics, electric vehicles, pumps, medical equipment, home and industrial appliances, etc., and are distributed globally.

The manufacturing facilities are certified to ISO9001:2015 and IATF16949 standards, supported by a series of advanced production systems including 100 sets of Wahli hobbing machines, winding machines, auto lathes, and related precision equipment.

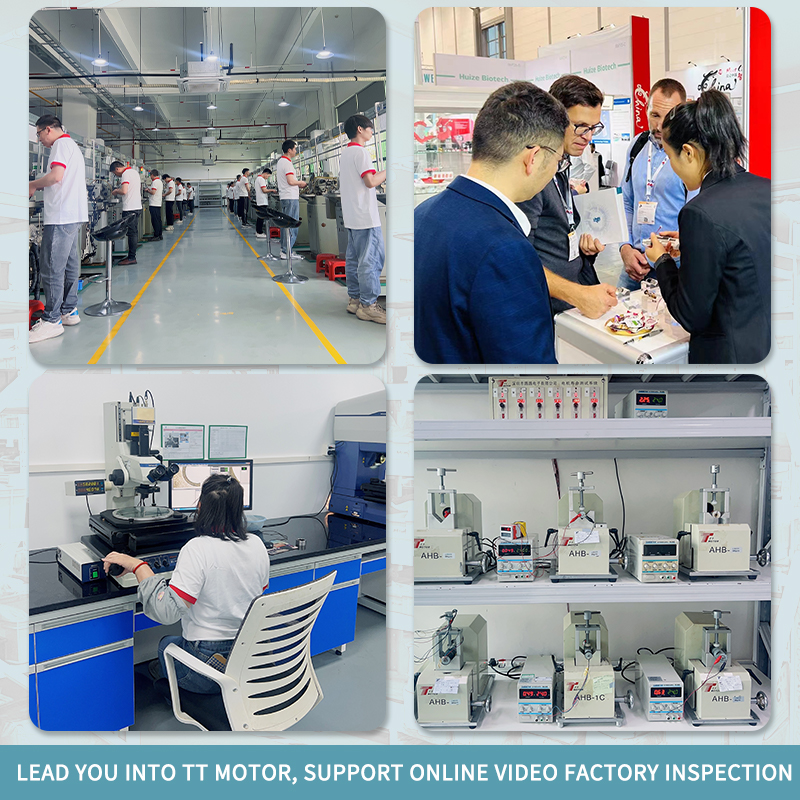

Production Facility - Precision Machinery

Frequently Asked Questions (FAQ)

1. What is the rated voltage for the GM12-15BY DC gear motor?

The GM12-15BY micro stepper gear motor is rated for 5VDC operation.

2. What reduction ratios are available for this series?

We offer a wide range of reduction ratios including 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, and 380 to meet different application requirements.

3. What is the holding torque of the GM12-15BY series?

The holding torque varies depending on the specific gear ratio model: GM12-15BY-30 provides 500g.cm, GM12-15BY-50 provides 700g.cm, and GM12-15BY-110 provides up to 1050g.cm.

4. What are the typical applications for this micro gear motor?

Due to its small size, low noise, and high torque capabilities, this motor is ideal for robotics, medical equipment, electric vehicles, pumps, and home or industrial appliances.
