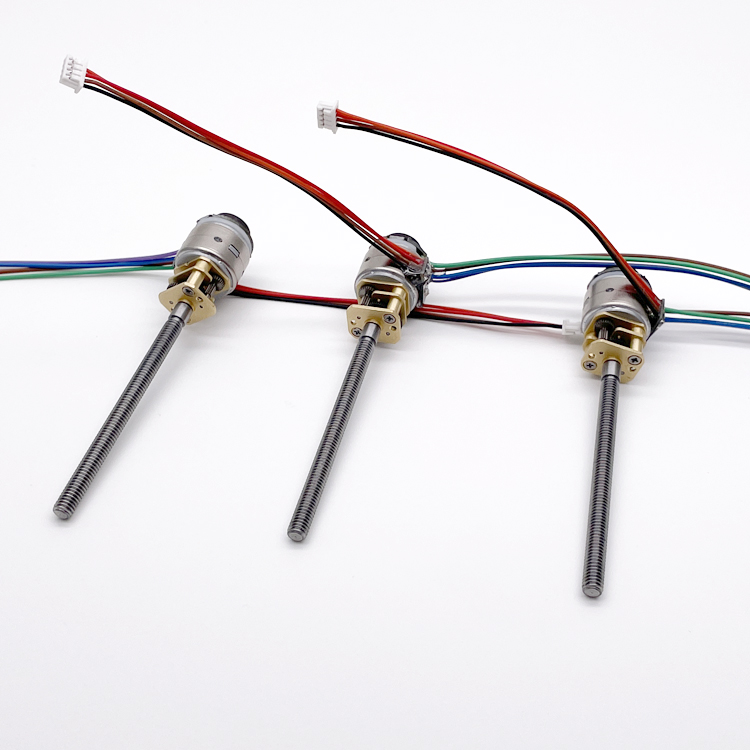

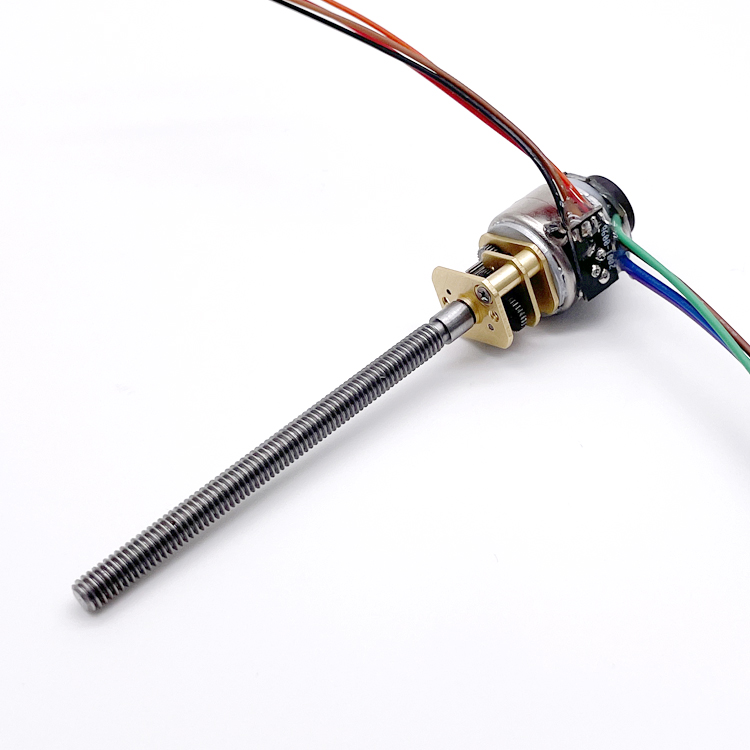

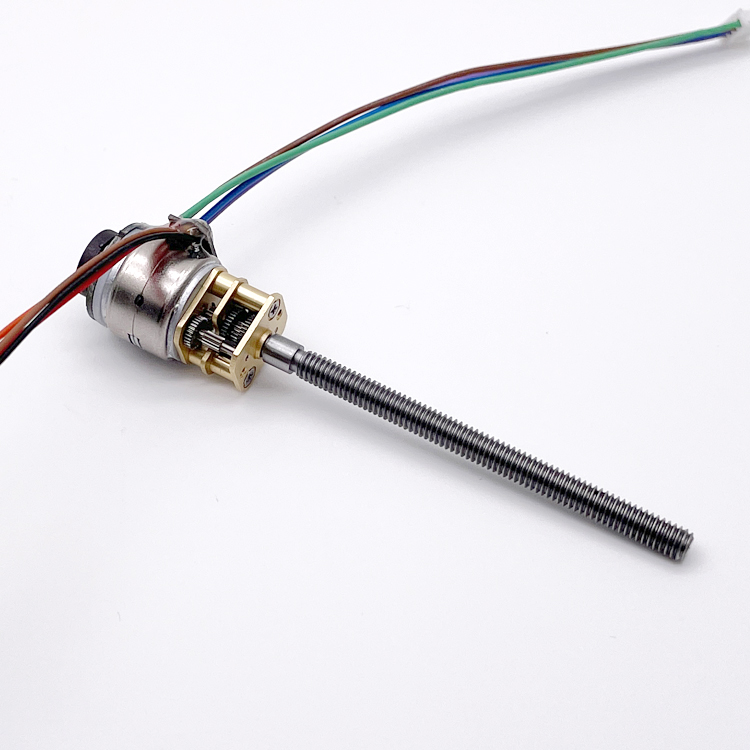

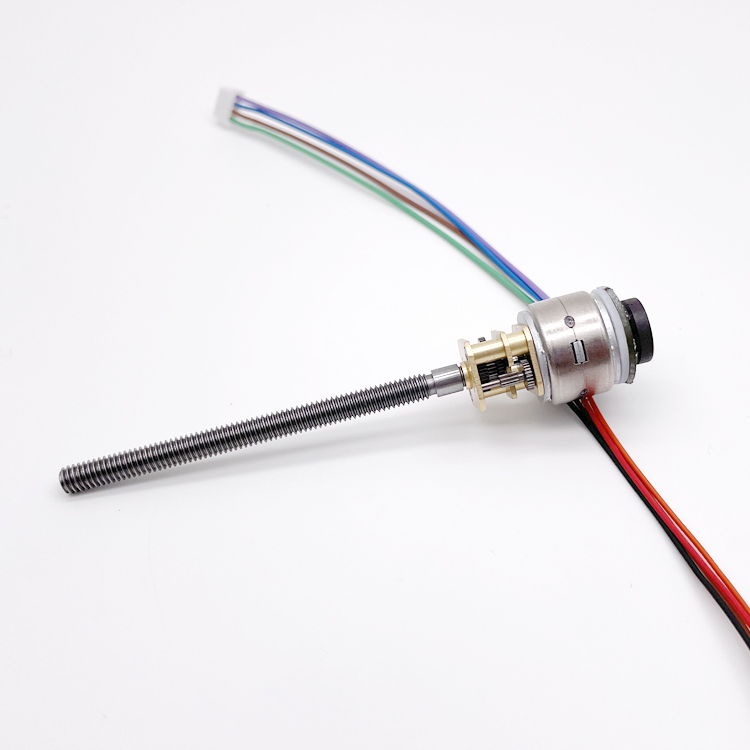

15mm Permanent Magnet Geared Motor Dc 5v Micro Stepper Gear Motor With Encoder
15mm Permanent Magnet Geared Motor Dc 5v Micro Stepper Gear Motor With Encoder
15mm Permanent Magnet Geared Motor Dc 5v Micro Stepper Gear Motor With Encoder
15mm Permanent Magnet Geared Motor Dc 5v Micro Stepper Gear Motor With Encoder
15mm Permanent Magnet Geared Motor Dc 5v Micro Stepper Gear Motor With Encoder
1 / 5
15mm Permanent Magnet Geared Motor Dc 5v Micro Stepper Gear Motor With Encoder
15mm Permanent Magnet Geared Motor Dc 5v Micro Stepper Gear Motor With Encoder
15mm Permanent Magnet Geared Motor Dc 5v Micro Stepper Gear Motor With Encoder
15mm Permanent Magnet Geared Motor Dc 5v Micro Stepper Gear Motor With Encoder
15mm Permanent Magnet Geared Motor Dc 5v Micro Stepper Gear Motor With Encoder

15mm Permanent Magnet Geared Motor Dc 5v Micro Stepper Gear Motor With Encoder

Send Inquiry

Product Description

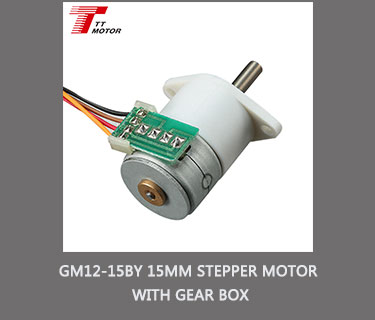

15mm permanent magnet geared motor dc 5v micro stepper gear motor with encoder
Main Features
  • 12*10mm gearbox plus 15mm stepping motor
  • Small size dc gear motor with low speed and big torque
  • 12mm gear motor provide 0.05Nm torque and more reliable
  • Suitable to small diameter, low noise and big torque application
  • Reduction ratio: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380
Model Electrical Specs Performance Specs
GM12-15BY-30 Rated voltage: 5VDC
Resistance: 10Ω
No. of Phase: 2
Step Angle: 18° 		Holding Torque: 500g.cm
Current: 500mA
Gear Ratio: 1/30
Pull in Rate: 800pps
GM12-15BY-50 Rated voltage: 5VDC
Resistance: 10Ω
No. of Phase: 2
Step Angle: 18° 		Holding Torque: 700g.cm
Current: 500mA
Gear Ratio: 1/50
Pull in Rate: 850pps
GM12-15BY-110 Rated voltage: 5VDC
Resistance: 10Ω
No. of Phase: 2
Step Angle: 18° 		Holding Torque: 1050g.cm
Current: 500mA
Gear Ratio: 1/110
Pull in Rate: 850pps
15mm permanent magnet geared motor
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Product Application Showcase
Others Application
Category Applications
Business Machines Vending Machines Printers ATM Copiers and Scanners
Camera and Optical Video Cameras Projectors -
Lawn and Garden Lawn Mowers Snow Blowers Trimmers Leaf Blowers
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
Certification 1 Certification 2 Certification 3
Our Manufacturing & Company Facility
We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners.
Manufacturing Facility
Our Customers
NIKE, FLEXTRONICS, STANLEY, etc.
Our Customers Brand Reference
Packing & Delivery
Standard packing
Packing details 1 Packing details 2 Packing details 3 Packing details 4
Shipping Time

DHL: 3-5 working days

UPS / TNT: 5-7 working days

FedEx: 7-9 working days

EMS: 12-15 working days

China Post / Sea Freight: Depends on destination country

Logistics and Transport
Customer Feedback
Excellent quality, better price, good service, and on-time delivery.
Customer Feedback 1 Customer Feedback 2 Customer Feedback 3 Customer Feedback 4
Frequently Asked Questions
How do I place an order?
Send us an inquiry → receive our quotation → negotiate order details → confirm sample details → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Can I request a sample order?
Yes, samples are available. Please reach out to discuss your specific requirements. Any charged sample fees will be fully refunded when a formal bulk order is placed.
Which shipping options are available?
We offer shipping via DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. Other shipping methods can be arranged upon request.
How long does the production and delivery process take?
Delivery time depends on the total order volume. Usually, the standard manufacturing process takes between 15 and 25 working days.
What should I do if my package has missing items?
Please contact our support team immediately. We will check the shipment details and confirm the package contents against your order to resolve any issues.
How do we confirm and process the payment?
We accept payments via T/T and PayPal. Other payment options can also be negotiated. Typically, we require a 30% to 50% deposit, with the remaining balance paid before dispatch.
