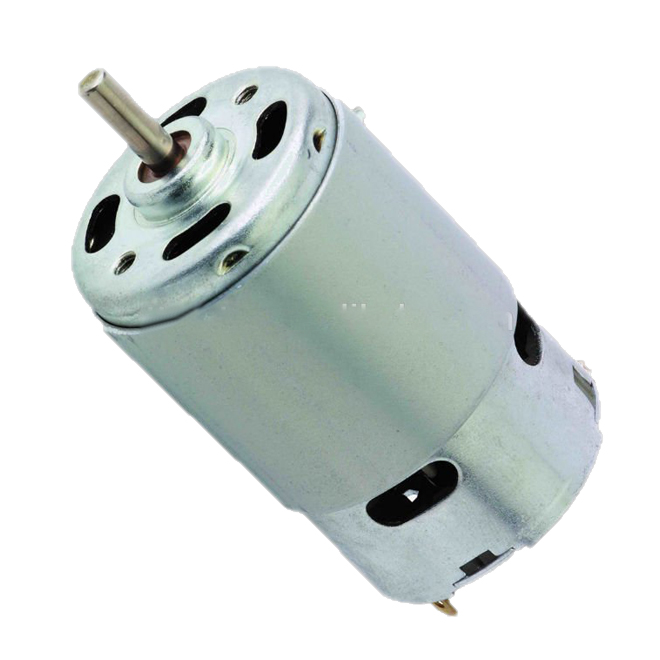

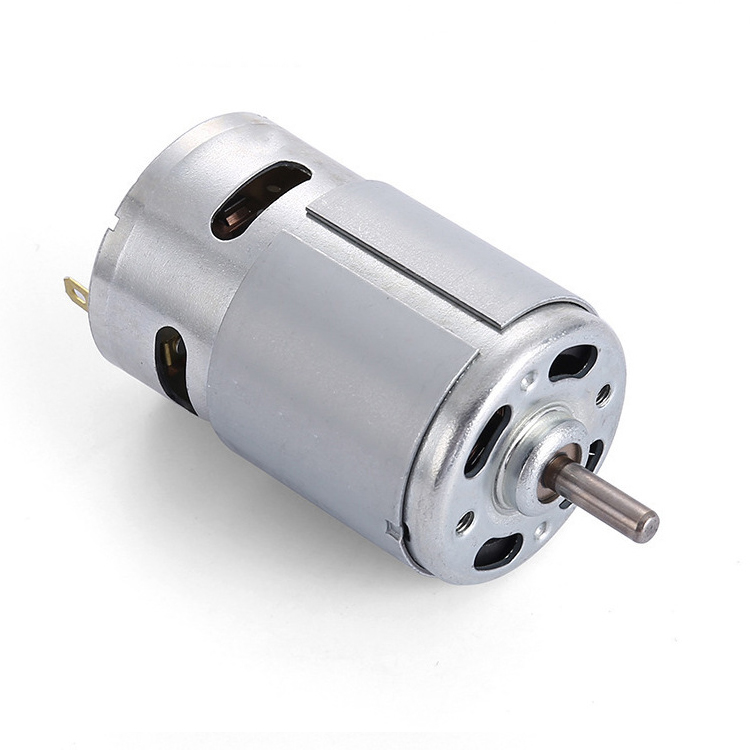

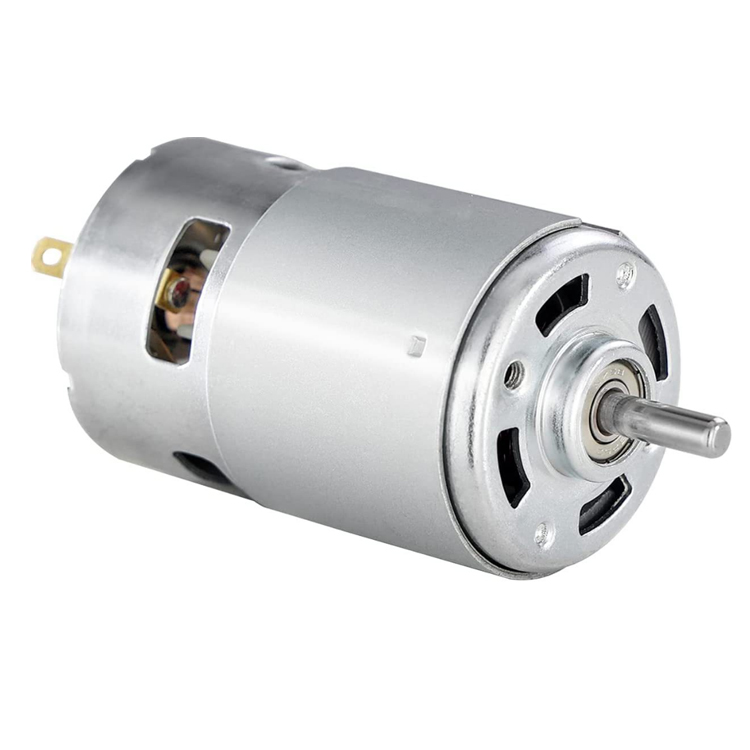

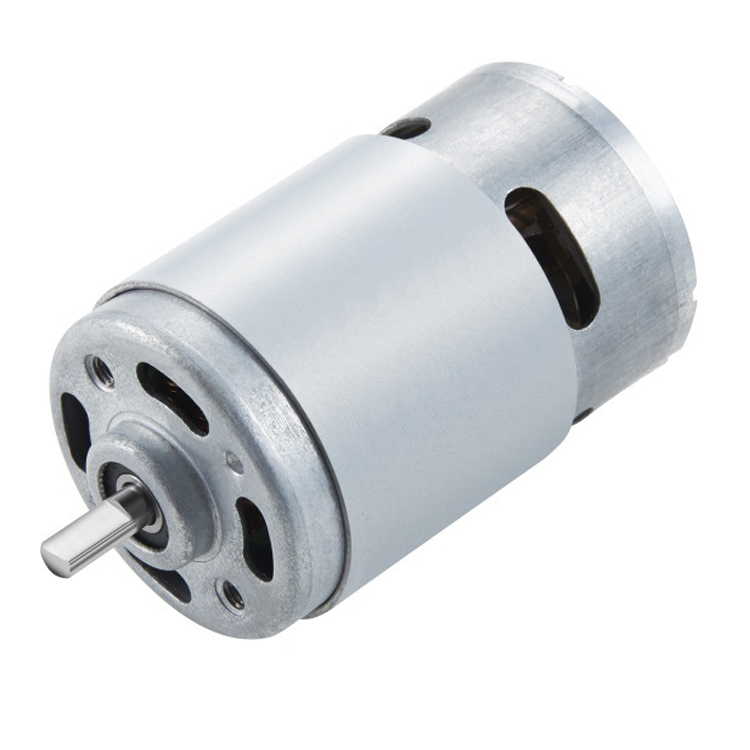

TT Motor High RPM RS-555 and RS-775 DC Motor 12V 24V DC Brushed Motor
Typical Applications: Printer, Copy Machine, Sewing Machine, Water Pump, Hair Dryer, Circular Saw, String Trimmer, etc.
High efficiency, less noise, and low current, 24V DC motor.
Can match with 45mm planetary gearbox, or 51mm gear box.

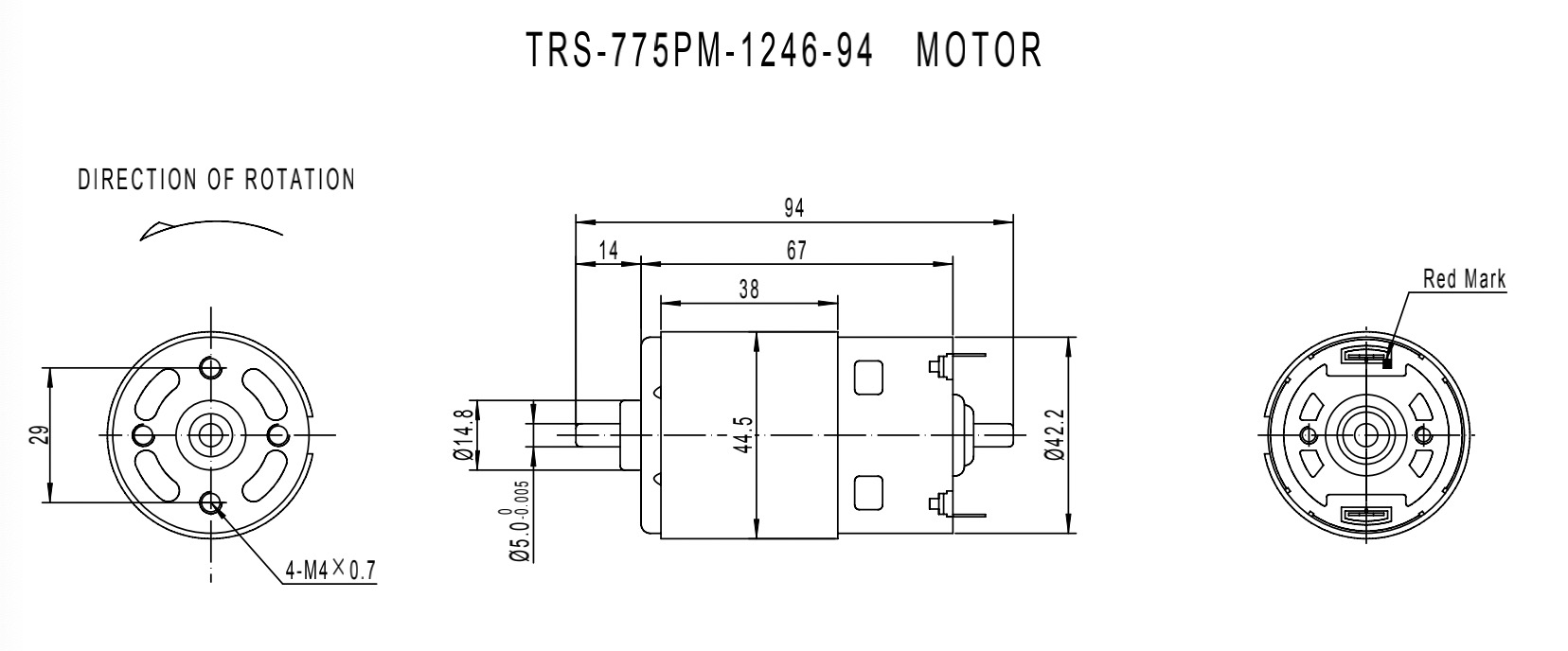

Shaft: 5.0mm diameter, shaft length 14.5/19.5mm.
Mounting holes: 2-M4.0x0.7.
Double shaft for encoder, 12ppr.
We can provide samples for your test.
| MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
| OPERATING RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
| V |
rpm |
A |
rpm |
A |
mN.m |
g.cm |
w |
mN.m |
g.cm |
A |
| TRS-775PM |
2765 |
6.0-30.0 |
24.0 |
7600 |
0.37 |
5810 |
0.22 |
73.53 |
750 |
44.7 |
312.35 |
3186 |
8.23 |
| 4045 |
6.0-15.0 |
12.0 |
4600 |
0.60 |
3500 |
4.30 |
84.31 |
860 |
36.6 |
352.94 |
3600 |
16.1 |
Q1: What are the main differences between the RS-555 and RS-775 motors?
A1: The RS-775 is generally larger and offers higher torque and output power capabilities compared to the RS-555, making it suitable for heavier-duty applications like circular saws and string trimmers, while the RS-555 is ideal for lighter precision devices.
Q2: Can these motors be integrated with gearboxes?
A2: Yes, both motors can be matched with a 45mm planetary gearbox or a 51mm gearbox to achieve custom speed reduction and torque multiplication.
Q3: Do you support customized shaft designs?
A3: The standard shaft has a 5.0mm diameter with available lengths of 14.5mm and 19.5mm. We can also provide a double shaft configuration designed for encoders (12ppr).
Q4: Are these brushed DC motors suitable for variable speed control?
A4: Yes, being brushed DC motors, their speed can easily be controlled using pulse-width modulation (PWM) or by adjusting the input voltage within their designated operating ranges.
Q5: Can I request product samples before purchasing in bulk?
A5: Absolutely. We can provide sample motors tailored to your technical requirements for initial testing and qualification.
