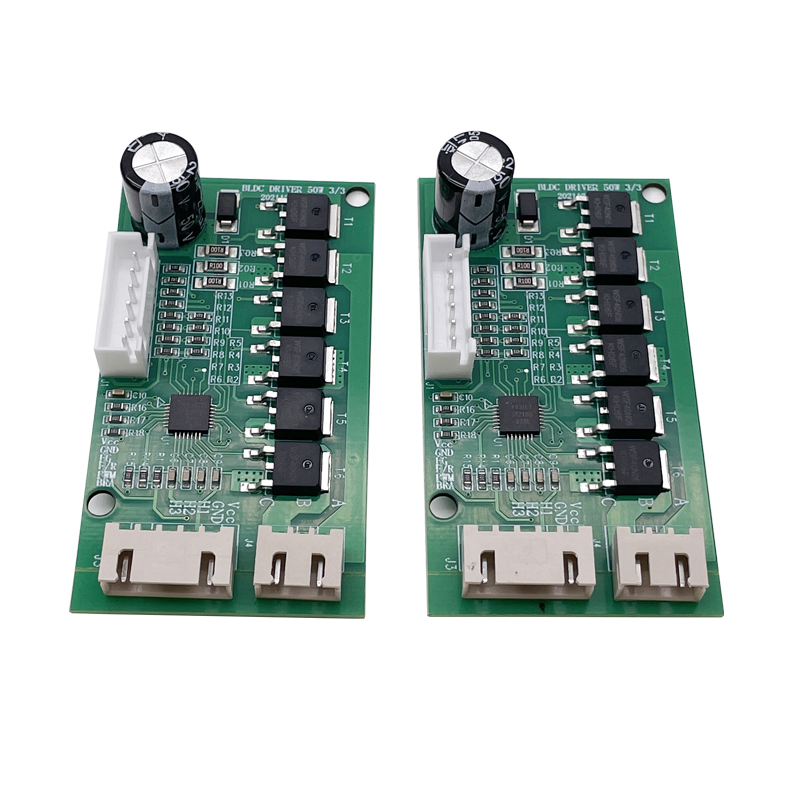

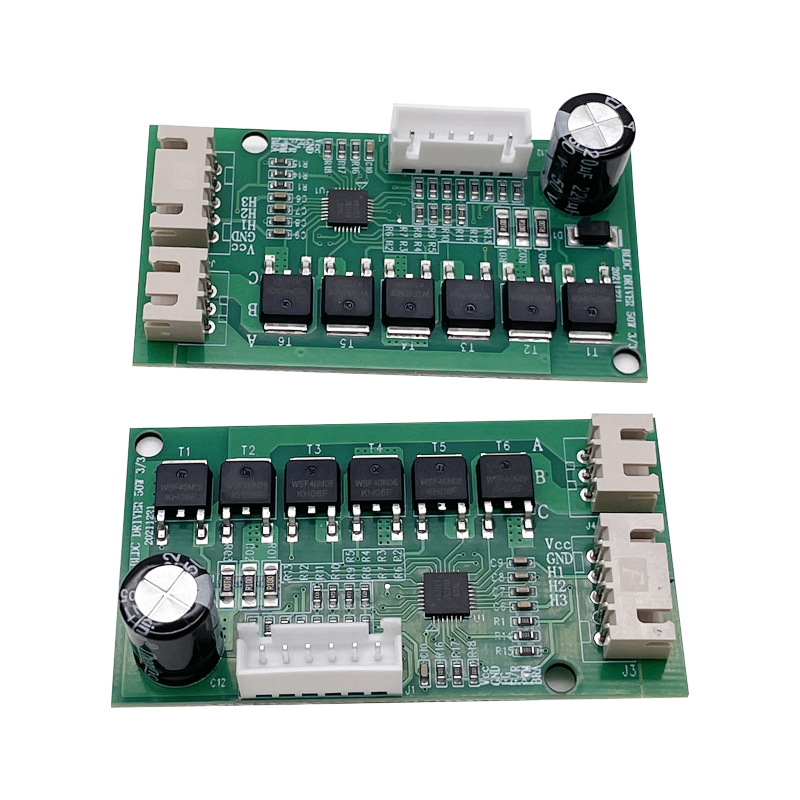

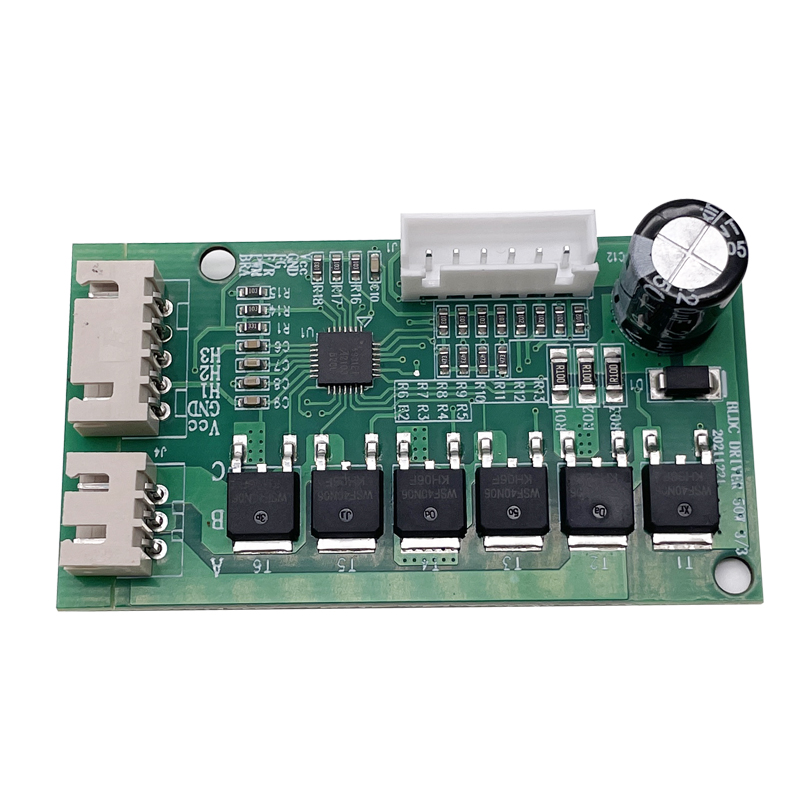

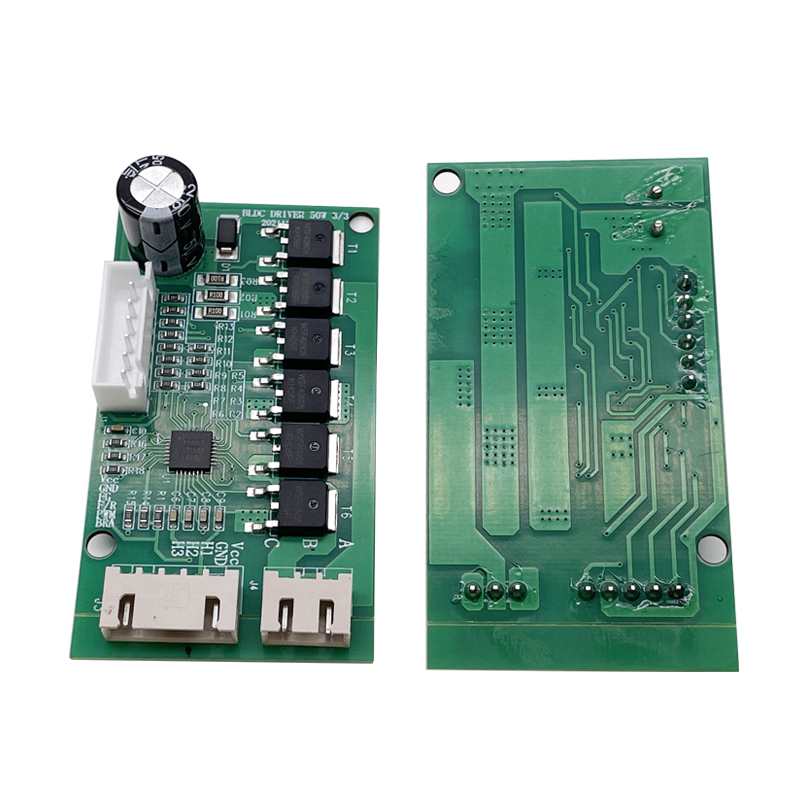

Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
1 / 5
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W

Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W

Send Inquiry

Product Description

Driver Specifications Overview

Driver Electrical Specifications

  • Driver Type: Inductive brushless motor driver
  • Voltage & Power: DC8V-26V / Rated power ≤ 50W
  • Working Current: 3A
  • Current-limiting Protection: 6A (depends on external resistance)
  • Operating Temperature: -10℃ to 70℃
  • Storage Temperature: -40℃ to 105℃ (Storage environment range: -30℃ to 125℃)
  • Stall Protection: Motor automatically stops running if blocked for 2 seconds
  • Driver Dimensions: 35mm × 58mm

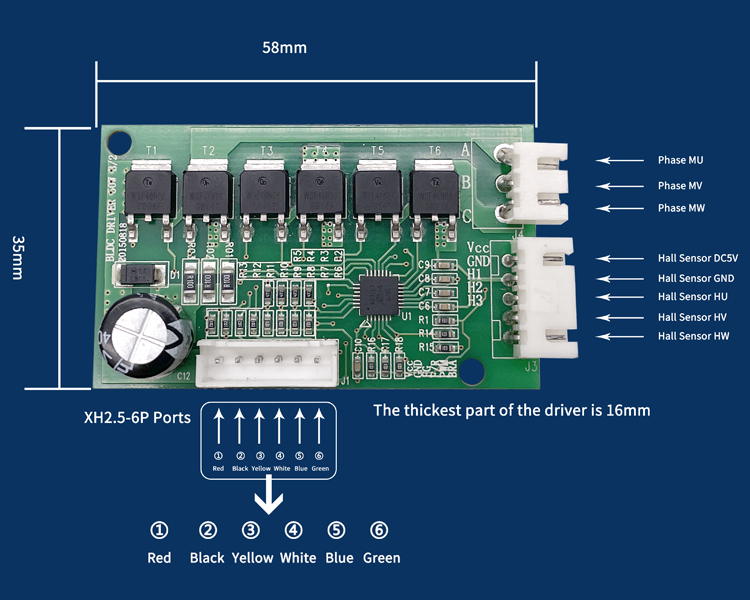

Driver Board Details
Product Diagram
Product View Left Product View Center Product View Right

Manufacturing Excellence & Development

Specializing in micro motors, gear motors, and their respective precision parts since 2000. Our products are engineered for high reliability and long operational life, serving critical applications in entertainment systems, automotive assemblies, household electronics, and industrial automation tools. Leveraging extensive research, quality production methodologies, and robust testing standards, we support distribution and customization requests globally to establish efficient, high-performance systems.

Production Process 1 Production Process 2 Production Process 3

Extended Applications

Industrial & Commercial Applications
Business Machines Vending Machines Printers / ATMs Copiers & Scanners
Camera & Optical Video Systems Professional Cameras Projectors
Lawn & Garden Lawn Mowers Snow Blowers / Trimmers Leaf Blowers

Packing & Delivery

Standard Packing Scheme

Standard Export Packing Layout

Packing Step 1 Packing Step 2 Packing Step 3 Packing Step 4

Shipping Timeframe Estimates

Logistics Overview
DHL Express 3-5 working days
UPS Express 5-7 working days
TNT Express 5-7 working days
FedEx Express 7-9 working days
EMS Speed Post 12-15 working days
Sea Freight & China Post Dependent on destination country

Frequently Asked Questions

How is an order processed?
Inquiry dispatch → Quotation receipt → Parameter negotiation & details confirmation → Sample evaluation & confirmation → Contract signing / Deposit payment → Mass production allocation → Cargo preparation → Balance verification & delivery → Follow-up support.
Are sample orders supported?
Yes, samples can be made available for parameter verification. The sample fee is fully refundable upon the placement of a formal bulk purchase order.
Which shipping options are available?
We offer shipping via DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. Alternative shipping routes can also be coordinated to meet specific project guidelines.
What is the expected production and delivery timeline?
Production timelines depend closely on total order volume and customization requirements. Standard mass manufacturing typically averages 15 to 25 working days.
What should I do if my package has missing components?
If any discrepancy is found, please submit the order details and verification photos immediately. The package contents will be verified against the shipping manifests, and a correction will be initiated.
What payment terms are accepted?
We accept payments via T/T and PayPal, with alternative payment modes available by arrangement. A standard payment structure requires a 30-50% deposit, with the remaining balance settled prior to shipping.
