DC 6V Mini N20 Gear Motor with Encoder for Industrial Applications High Torque Metal Gear Motor for B2B Buyers

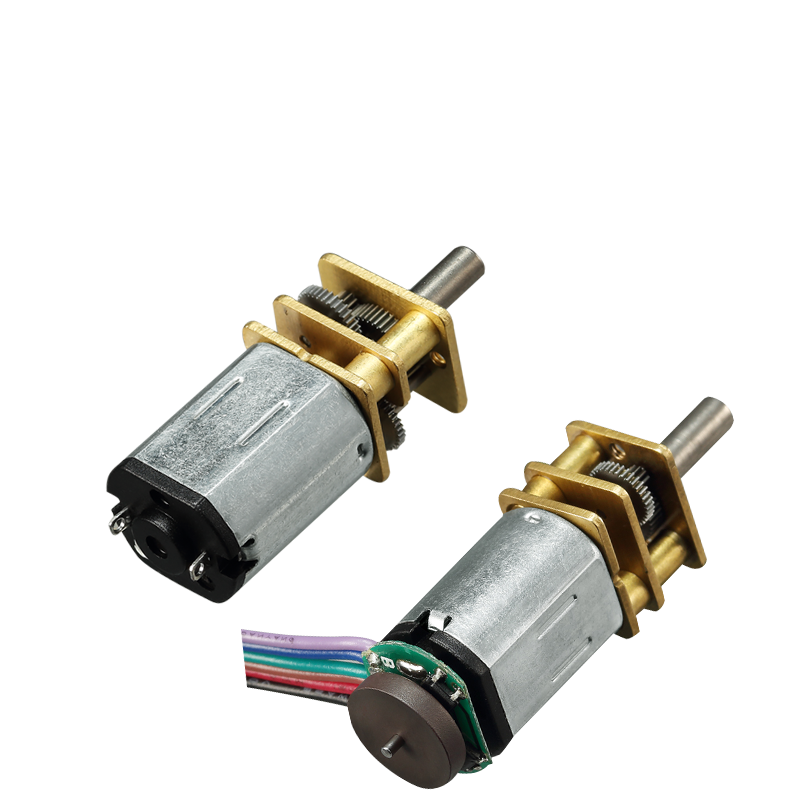

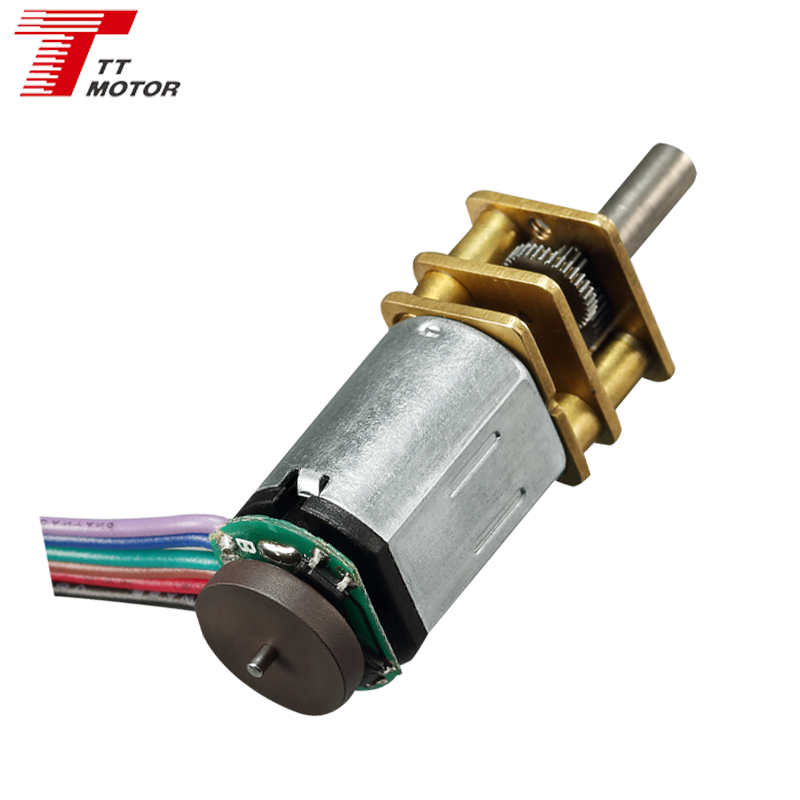

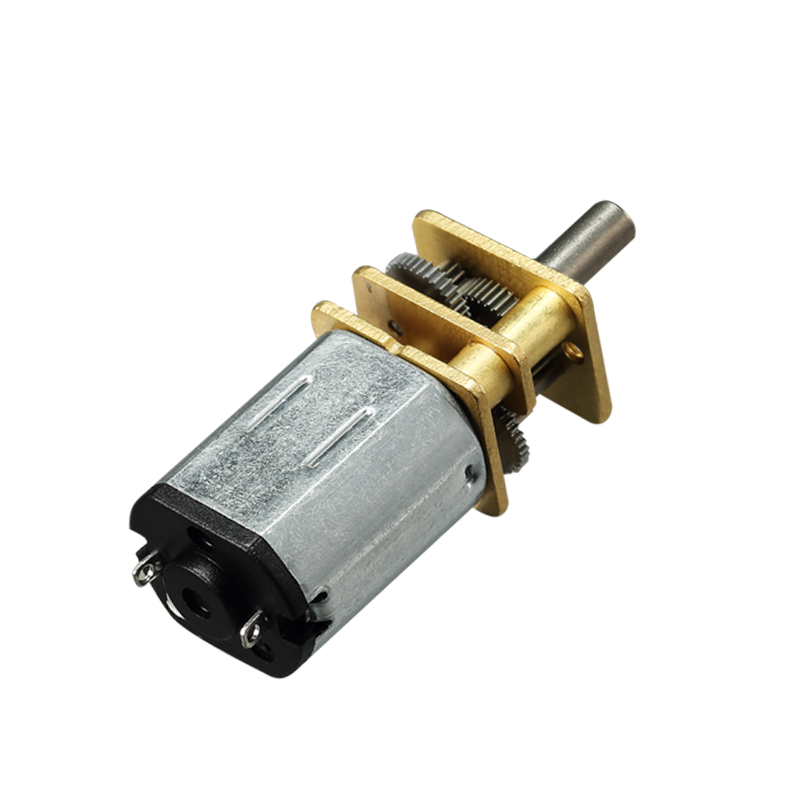

GM12-N20VA DC 6V Mini Metal N20 Gear Motor with Encoder

Main Features

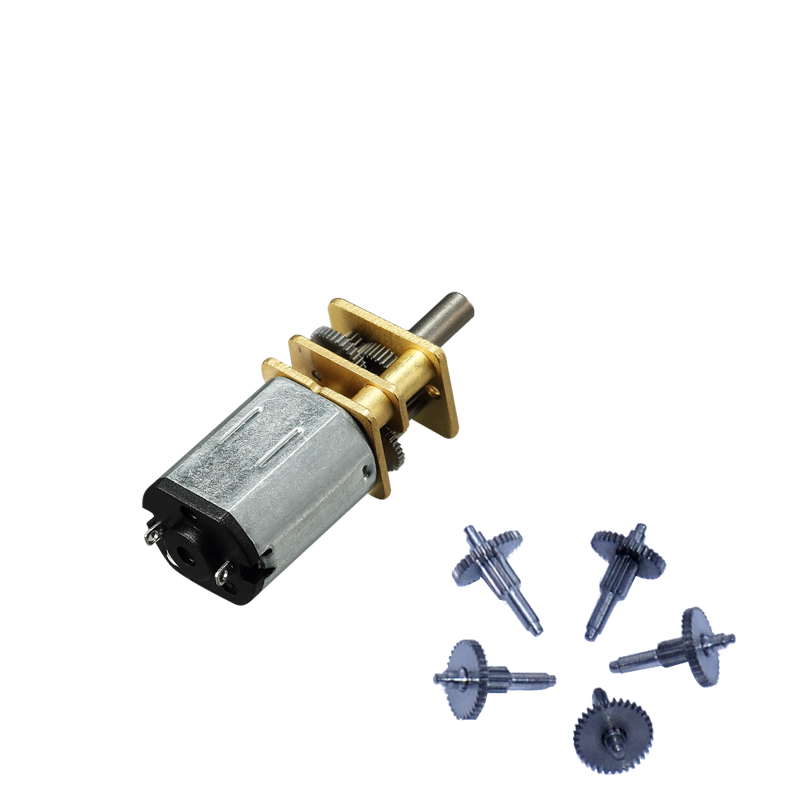

12*10 mm gearbox plus N20 & N30 permanent magnet dc motor
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.1Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motors can match encoder, 3ppr
Reduction ratio: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000

Model Technical Parameters

Model Name	Electrical Characteristics	No-Load Parameters	Rated Parameters	Stall Parameters
TFF-N20VA-13110	Rated voltage: 2.4V DC	No-load speed: 14800r/min	Rated speed: 12000r/min	Output power: 0.31W
		No-load current: 60mA	Rated torque: 2.5g.cm	Stall torque: 13g/cm
			Rated current: 200mA	Stall current: 1.20A
TFF-N20VA-09220	Rated voltage: 5V DC	No-load speed: 14800r/min	Rated speed: 12000r/min	Output power: 0.31W
		No-load current: 30mA	Rated torque: 2.5g.cm	Stall torque: 13g/cm
			Rated current: 120mA	Stall current: 0.52A
TFF-N20VA-05430	Rated voltage: 12V DC	No-load speed: 16000r/min	Rated speed: 12500r/min	Output power: 0.35W
		No-load current: 15mA	Rated torque: 3.0g.cm	Stall torque: 13g/cm
			Rated current: 60mA	Stall current: 0.25A

GM12-N20VA-13110-xxx Specifications

Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1450	470	285	145	96	69	58	50	38
Rated speed rpm	1200	400	240	120	80	57	48	40	31
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max. tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-09220-xxx Specifications

Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1450	470	285	145	96	69	58	50	38
Rated speed rpm	1200	400	240	120	80	57	48	40	31
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max. tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-05430-xxx Specifications

Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1550	530	310	160	110	78	60	55	43
Rated speed rpm	1100	400	250	125	83	60	50	42	33
Rated torque kg.cm	0.02	0.05	0.08	0.18	0.27	0.37	0.45	0.5	0.5
Max. tolerance torque kg.cm	0.1	0.2	0.4	0.8	1.1	1.5	1.6	1.9	2.5

Product Applications

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Other Applications Overview

Category	Application Scenarios
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors	-
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.
