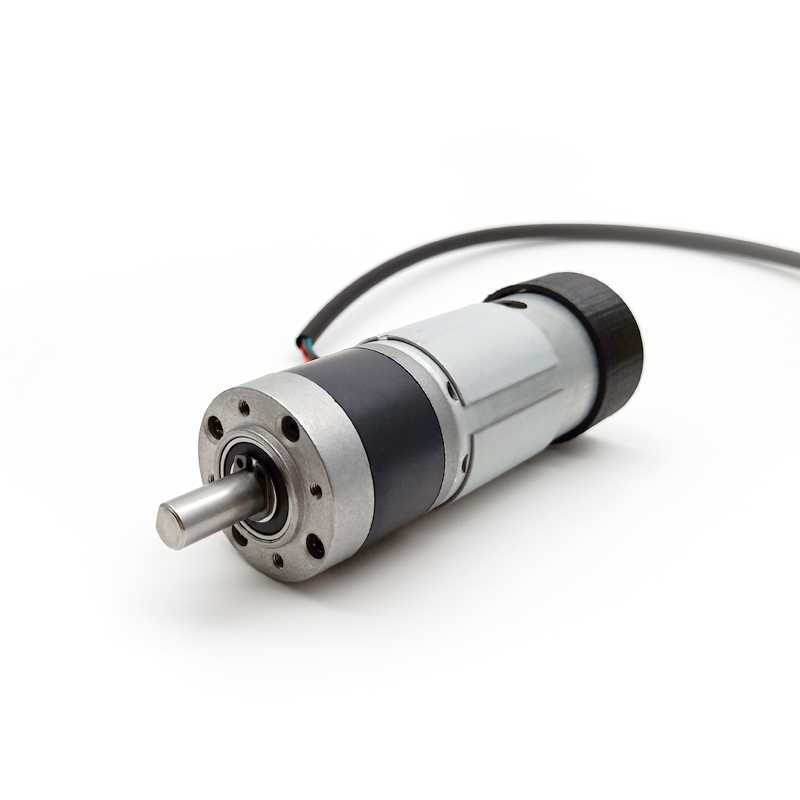

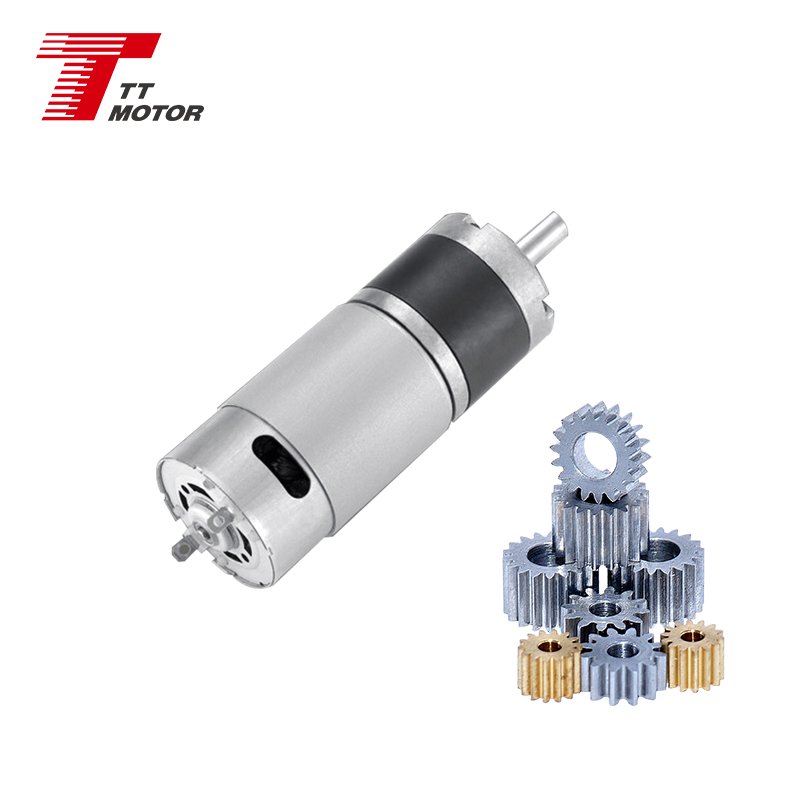

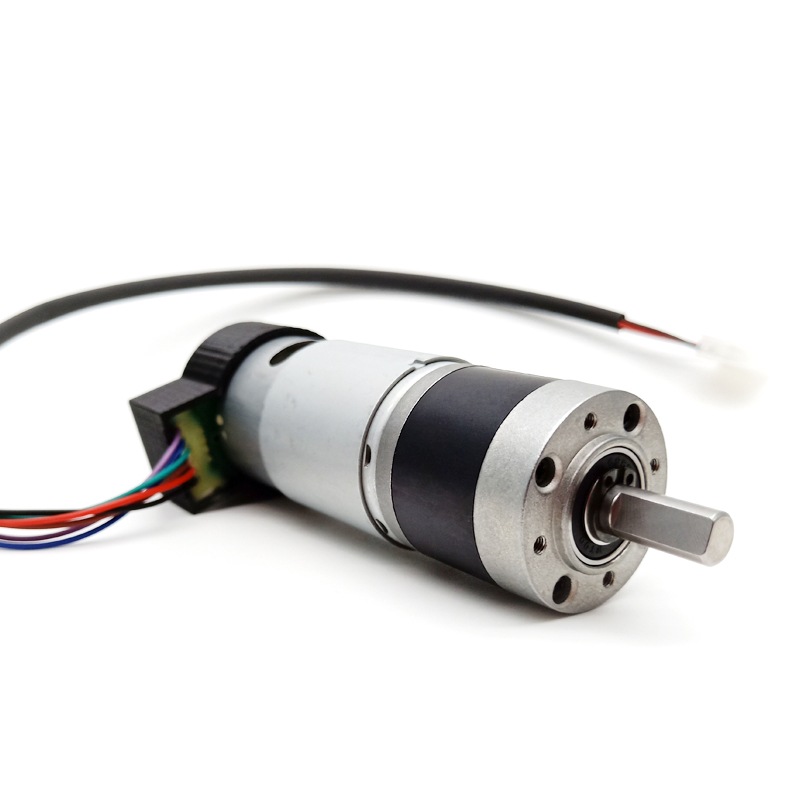

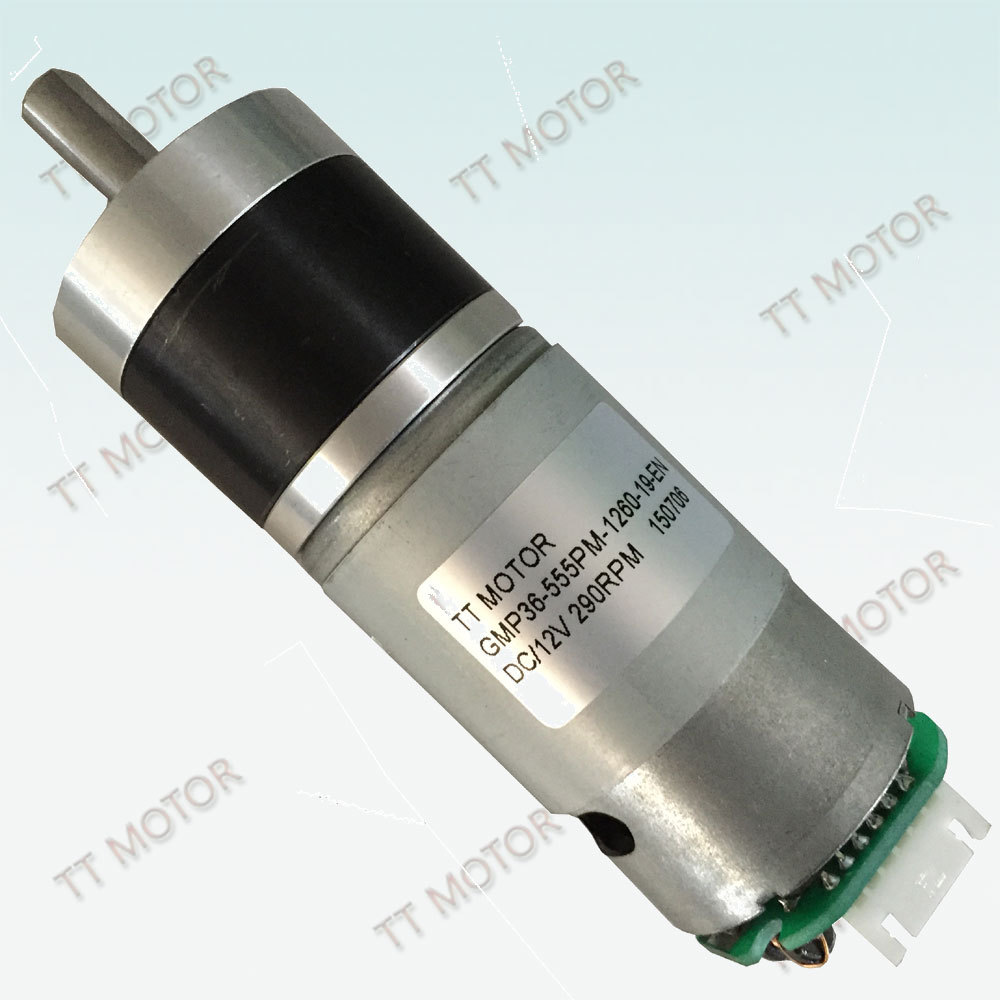

GMP36-555PM-EN 24V DC Electric Planetary Gear Motor with Encoder for Global B2B Procurement

GMP36-555PM-EN electric motor dc 24v planetary gear motor encoder

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, 12V dc gear motor, optical equipment, Automat cordless power tool, lighting, etc.

Gear Motor Specifications

Model: Gear Motor GMP36-555PM

Model Variant	Rated Voltage	No-load Speed	No-load Current	Rated Speed	Rated Torque	Rated Current	Output Power	Stall Torque	Stall Current
TTRS-555PM-1233	12VDC	3300 r/min	200mA	2800 r/min	200 g.cm	1000mA	5.7W	1150 g.cm	5.5A
TTRS-555PM-1260	12VDC	6000 r/min	300mA	5250 r/min	290 g.cm	2400mA	16W	2200 g.cm	15.0A
TTRS-555PM-2440	24VDC	2400 r/min	150mA	3150 r/min	200 g.cm	700mA	6.4W	1000 g.cm	2.7A

Main Features

36mm Planetary reducer plus 3530, 5 series of carbon brush motor and TEC3650 & 3640 brushless motor
Small size dc gear motor with low speed and big torque
36mm gear motor provides 3.0Nm torque and is more reliable
Suitable to small diameter, low noise and big torque applications
Dc Gear motors can match encoder, 11pr
Reduction ratio: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720

Performance Data by Model Variant

GMP36-555PM-1233-xxx Data Table

Parameter	Ratio 4	Ratio 19	Ratio 51	Ratio 100	Ratio 139	Ratio 189	Ratio 264	Ratio 369	Ratio 516
Length (mm)	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed (rpm)	750	160	60	32	23	17	12	9	6
Rated speed (rpm)	700	150	55	28	20	15	11	8	5.5
Rated torque (kg.cm)	0.64	2.7	6	12	15	21	26	30	30
Max. tolerance torque (kg.cm)	3.7	15	35	70	70	70	70	70	70

GMP36-555PM-1260-xxx Data Table

Parameter	Ratio 4	Ratio 19	Ratio 51	Ratio 100	Ratio 139	Ratio 189	Ratio 264	Ratio 369	Ratio 516
Length (mm)	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed (rpm)	1400	300	110	55	42	32	23	16	11.5
Rated speed (rpm)	1300	275	100	50	38	28	20	15	10.5
Rated torque (kg.cm)	0.9	3.8	9	18	22	30	30	30	30
Max. tolerance torque (kg.cm)	5	20	60	60	60	70	70	70	70

GMP36-555PM-2440-xxx Data Table

Parameter	Ratio 4	Ratio 19	Ratio 51	Ratio 100	Ratio 139	Ratio 189	Ratio 264	Ratio 369	Ratio 516
Length (mm)	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed (rpm)	980	200	75	38	28	21	15	10	7.5
Rated speed (rpm)	750	155	60	30	21	16	13	9.5	7
Rated torque (kg.cm)	0.64	2.7	6	12	15	21	26	30	30
Max. tolerance torque (kg.cm)	3.2	13	25	50	60	70	70	70	70

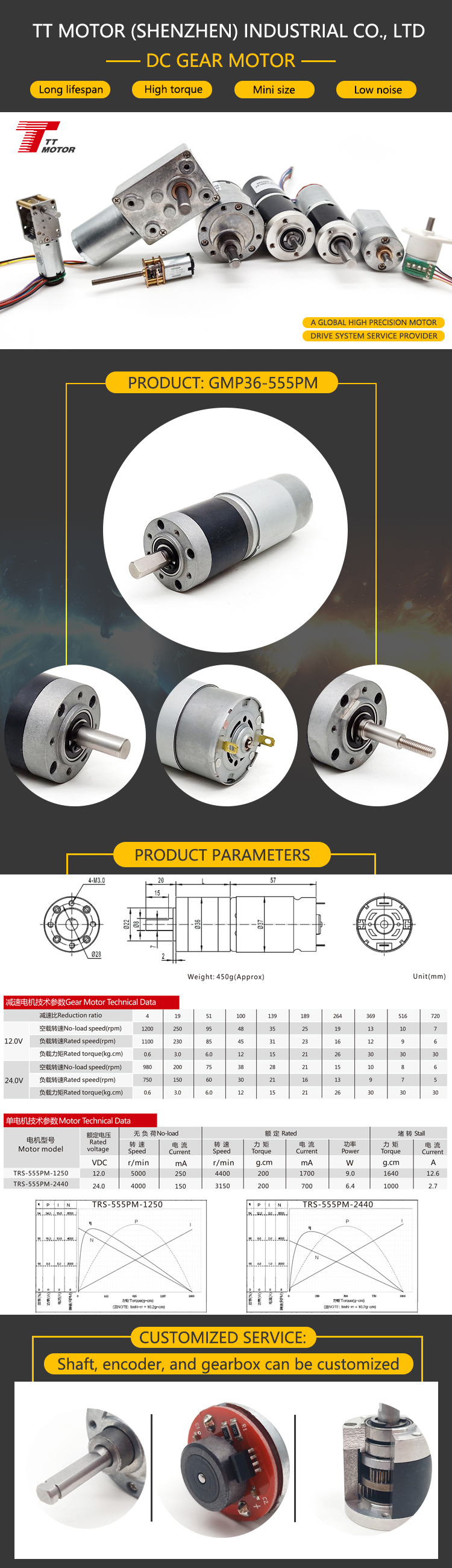

Planetary Gear Motor Specifications Diagram

Product Applications

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Other Applicable Industries

Business Machines

Vending Machines
Printers
ATM
Copiers and Scanners

Camera and Optical

Video
Cameras
Projectors

Lawn and Garden

Lawn Mowers
Snow Blowers
Trimmers
Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.

Company Profile

Specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in overseas sales by seeking global partners.

Our Major Customers

NIKE, FLEXTRONICS, STANLEY, etc.

Packing & Delivery

Standard packing solutions optimized for safe transit.

Shipping Time Estimates

DHL: 3-5 working days

UPS: 5-7 working days

TNT: 5-7 working days

FedEx: 7-9 working days

EMS: 12-15 working days

China Post / Sea: Depends on destination country

Customer Testimonials

"Excellent quality, better price, good service, and on-time delivery."

Frequently Asked Questions

QHow to order?

Send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

QHow about Sample order?

Samples are available for you. Please contact us for details. Once we charge you sample fee, please be assured it will be refunded when you place formal order.

QWhich shipping way is available?

DHL, UPS, FedEx, TNT, EMS, China Post, and Sea are available. Other shipping ways are also available; please contact us if you need shipping by another method.

QHow long is the deliver [producing] and shipping?

Delivery time depends on the quantity you order. Usually, it takes 15-25 working days.

QMy package has missing products. What can I do?

Please contact our support team and we will confirm your order with the package contents. We apologize for any inconvenience.

QHow to confirm the payment?

We accept payment by T/T and PayPal. Other payment ways could also be accepted; please contact us before you pay by other methods. A 30-50% deposit is also acceptable, with the balance paid before shipping.
