GM25-370CA Electric 12v Encoder Dc Gear Motor for Automatic Toys

Send Inquiry

Product Description

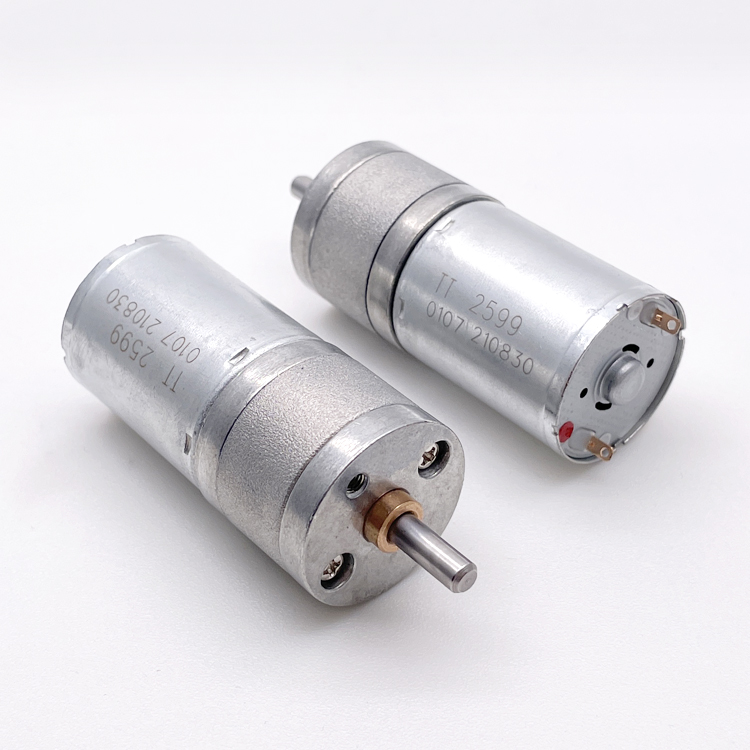

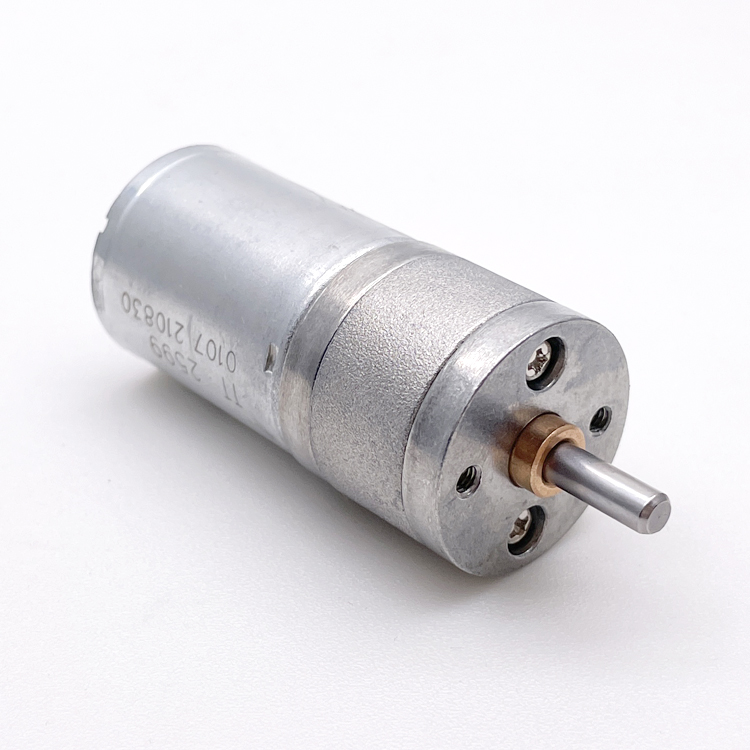

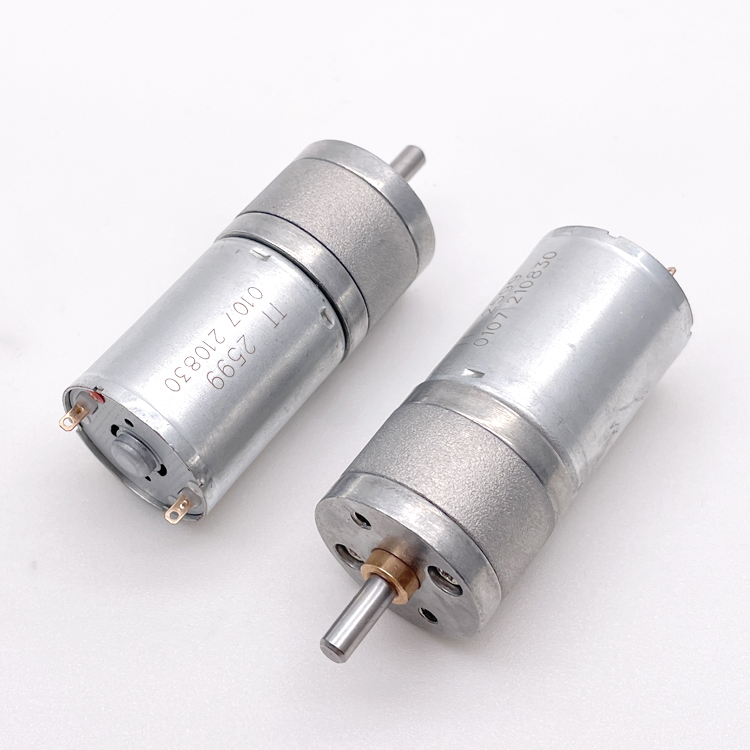

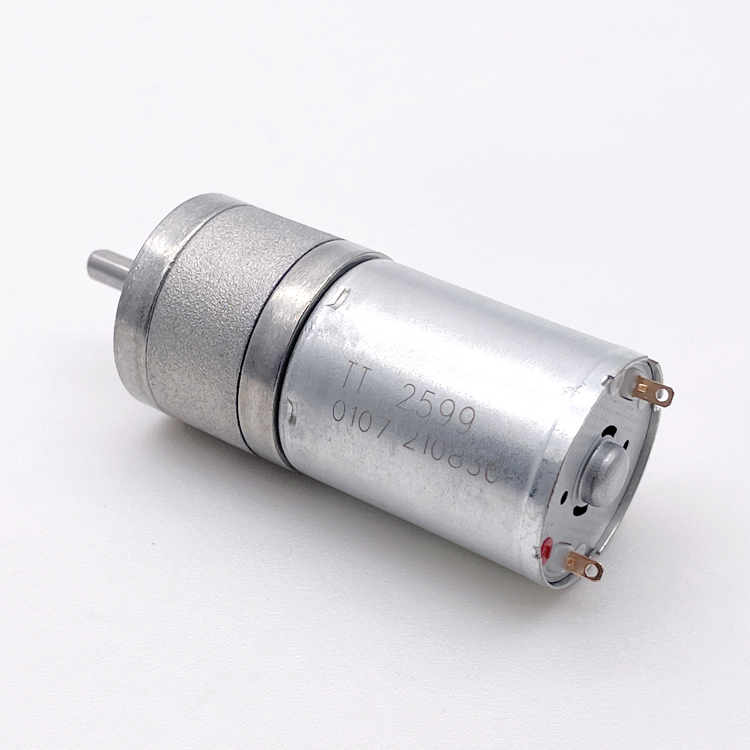

GM25-370CA Electric 12V Encoder DC Gear Motor for Automatic Toys

Product Overview

This compact and high-torque DC gear motor is engineered for reliability and precision. Equipped with a robust 25mm gearbox and compatible with an 11ppr encoder, it provides accurate feedback control for a variety of automation tasks.

Product Application

Designed for heavy-duty applications requiring controlled movement and reliability. Common applications include:

Automatic door operators
Automatic energy-saving bath systems
Electrically controlled valves
Oxygen machines
Optical equipment
Automatic cordless power tools and lighting systems

Main Features

25mm gearbox paired with 370 & 320 permanent magnet DC motor
Small size dc gear motor featuring low speed and high output torque
25mm gear motor delivers 0.5Nm torque for dependable operation
Ideal for installations requiring small diameter profiles, low operating noise, and high torque

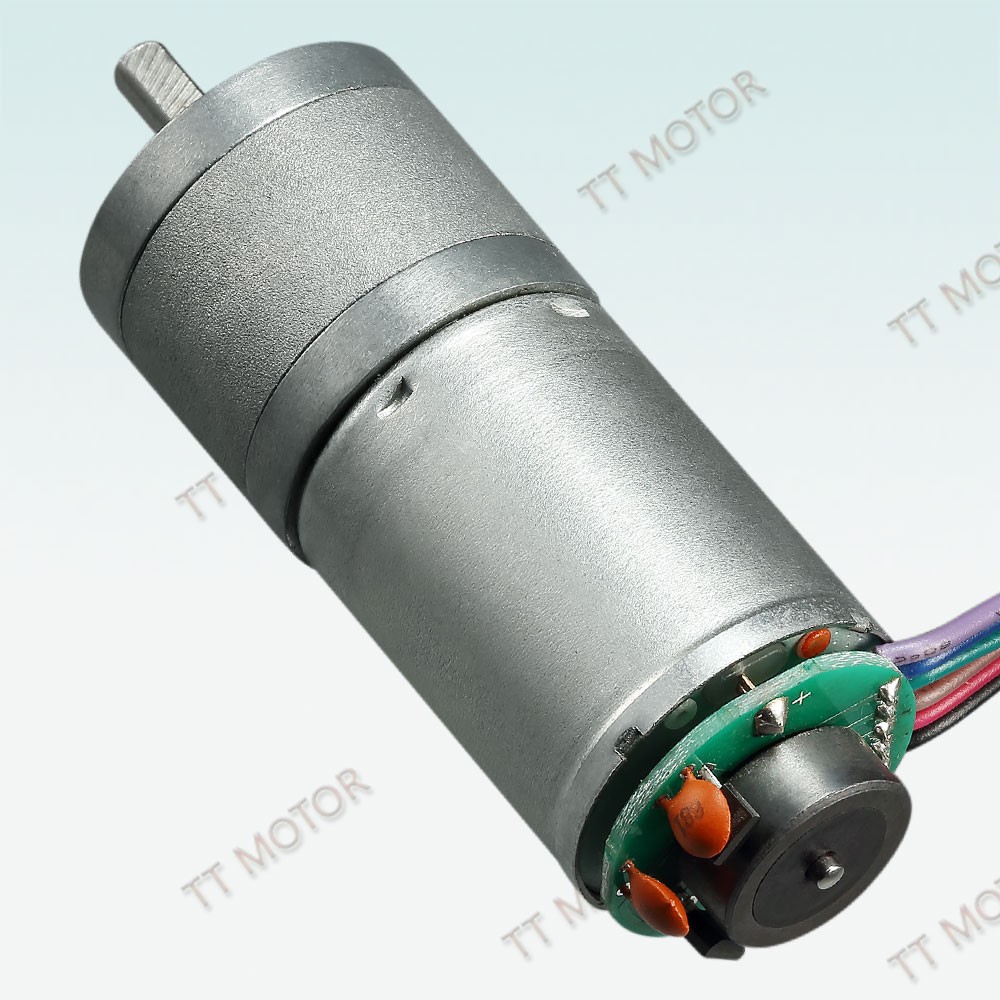

DC gear motors can be configured with an 11ppr encoder
Available reduction ratios: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499

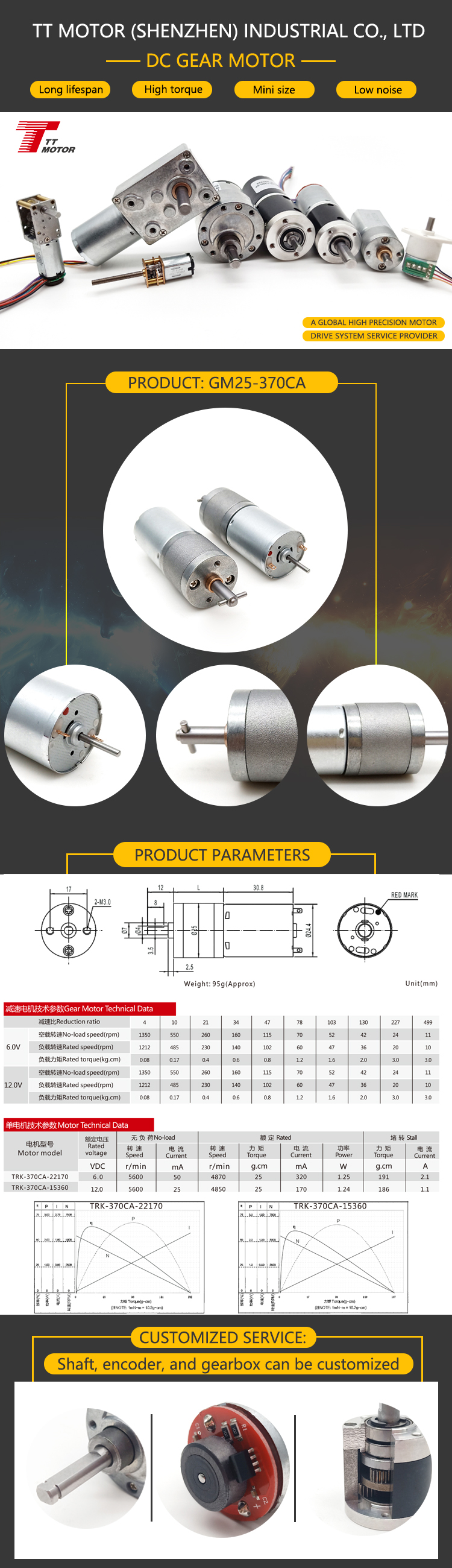

Model Specs: GM25-370CA

Model Reference	Rated Voltage	Rated Speed / No-load Speed	Output Power	Torque (Rated/Stall)	Current (No-load/Rated/Stall)
TRK-370CA-22170	6VDC	4800 r/min / 5600 r/min	1.18W	24 g.cm / 186 g.cm	50mA / 300mA / 2.1A
TRK-370CA-15360	12VDC	4800 r/min / 5600 r/min	1.18W	24 g.cm / 186 g.cm	25mA / 160mA / 1.06A
TRK-370CA-12560	12VDC	3000 r/min / 3700 r/min	0.62W	20 g.cm / 125 g.cm	20mA / 90mA / 0.6A

GM25-370CA-22170-xxx Specifications

Parameter	Ratios	Values	Values	Values	Values	Values	Values	Values	Values
Reduction ratio	4	10	21	34	47	78	103	130	227
Length (mm)	17	19	19	21	21	23	23	25	25
No-load speed (rpm)	1280	510	245	150	110	68	50	42	24
Rated speed (rpm)	1200	480	230	137	102	62	47	37	21
Rated torque (kg.cm)	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7
Max. tolerance torque (kg.cm)	0.45	1.1	2.3	3.9	5.2	10	10	10	10

GM25-370CA-15360-xxx Specifications

Parameter	Ratios	Values	Values	Values	Values	Values	Values	Values	Values
Reduction ratio	4	10	21	34	47	78	103	130	227
Length (mm)	17	19	19	21	21	23	23	25	25
No-load speed (rpm)	1280	510	245	150	110	68	50	42	24
Rated speed (rpm)	1200	480	230	137	102	62	47	37	21
Rated torque (kg.cm)	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7
Max. tolerance torque (kg.cm)	0.45	1.1	2.3	3.9	5.2	10	10	10	10

GM25-370CA-12560-xxx Specifications

Parameter	Ratios	Values	Values	Values	Values	Values	Values	Values	Values
Reduction ratio	4	10	21	34	47	78	103	130	478
Length (mm)	17	19	19	21	21	23	23	25	27
No-load speed (rpm)	850	340	165	100	75	48	34	27	7.5
Rated speed (rpm)	750	300	145	86	64	38	29	23	6.3
Rated torque (kg.cm)	0.05	0.12	0.26	0.4	0.6	0.9	1.2	1.4	2.5
Max. tolerance torque (kg.cm)	0.3	0.75	1.5	2.6	3.5	10	10	10	10

Packaging & Shipping

Model Reference	Case Pack (pcs)	Carton Size	Carton Gross Weight
GM12-N20VA	840	41.5 * 34.5 * 18.5 CM	10.5 kg

Typical Application Details

Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.

Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk.

Camera and Optical:
Video, Cameras, Projectors.

Medical:
Urine Analyzer, Blood Sugar Analyzer, Injector.

Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

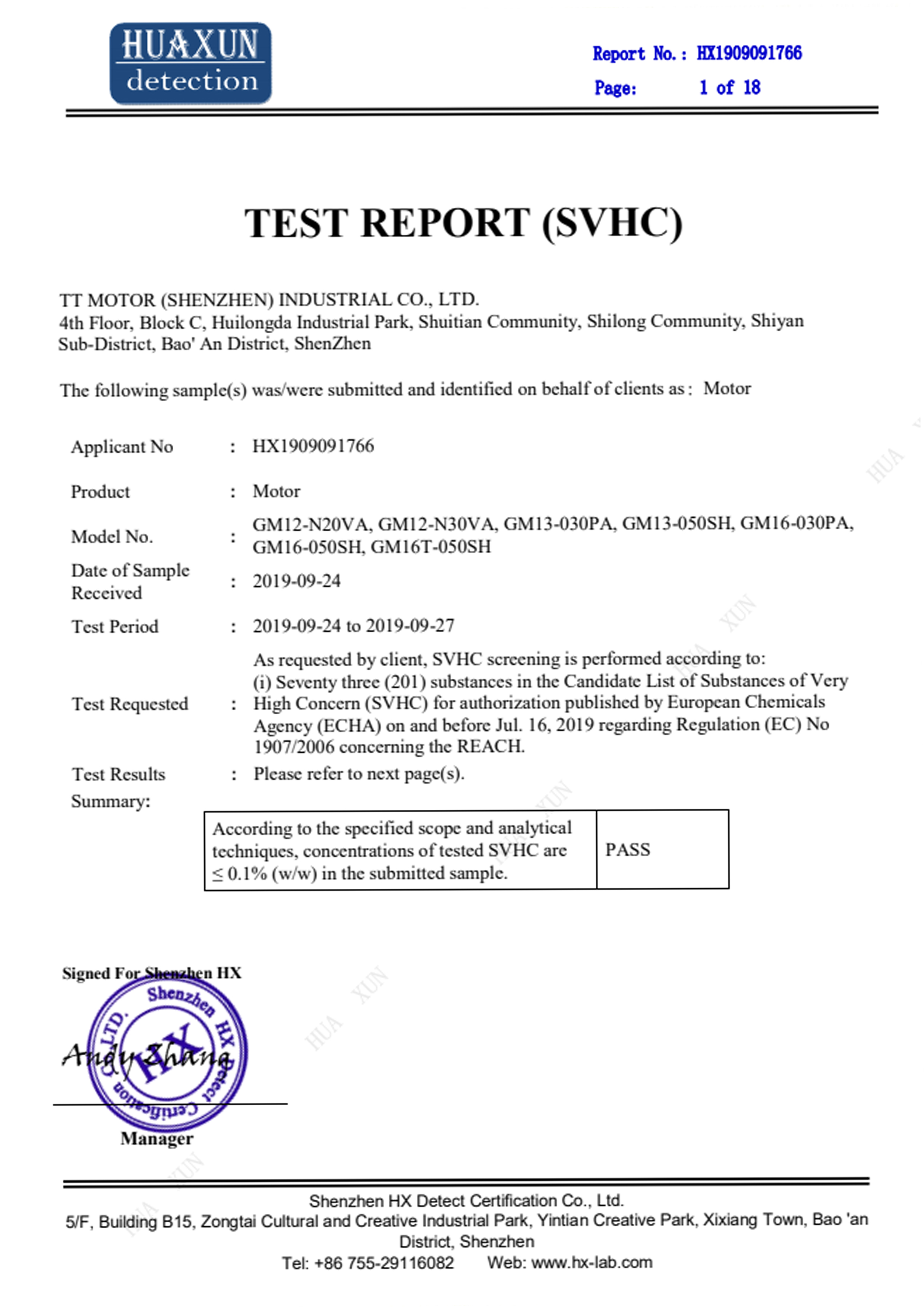

Certifications

Customer Reviews

Our Customers

Industrial Expertise

Specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.

By leveraging a hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in sales overseas by seeking global partners.

Frequently Asked Questions (FAQ)

What are the primary applications for the GM25-370CA DC gear motor?

The motor is widely used in automatic door operators, energy-saving bath utilities, electrical controlled valves, oxygen machines, optical equipment, and automatic toys due to its reliable low-speed and high-torque characteristics.

Can this motor be integrated with an encoder?

Yes, the GM25-370CA DC gear motor is compatible with a feedback encoder (11ppr) for precise positioning and speed control applications.

What range of reduction ratios does this series offer?

It supports multiple reduction ratios, including 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, and 499, allowing customization based on speed and torque requirements.

What is the typical operating voltage for these motors?

The series provides options optimized for 6VDC and 12VDC operating environments.

Does the unit operate with low noise outputs?

Yes, the design combines a 25mm gearbox and a structured PMDC motor, explicitly optimized for compact layout, minimal noise levels, and high-torque execution.
