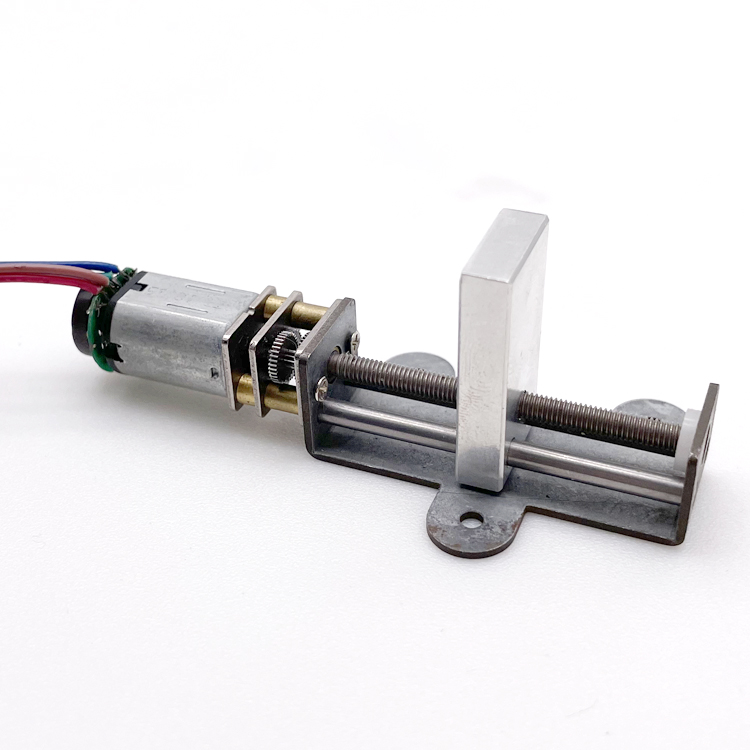

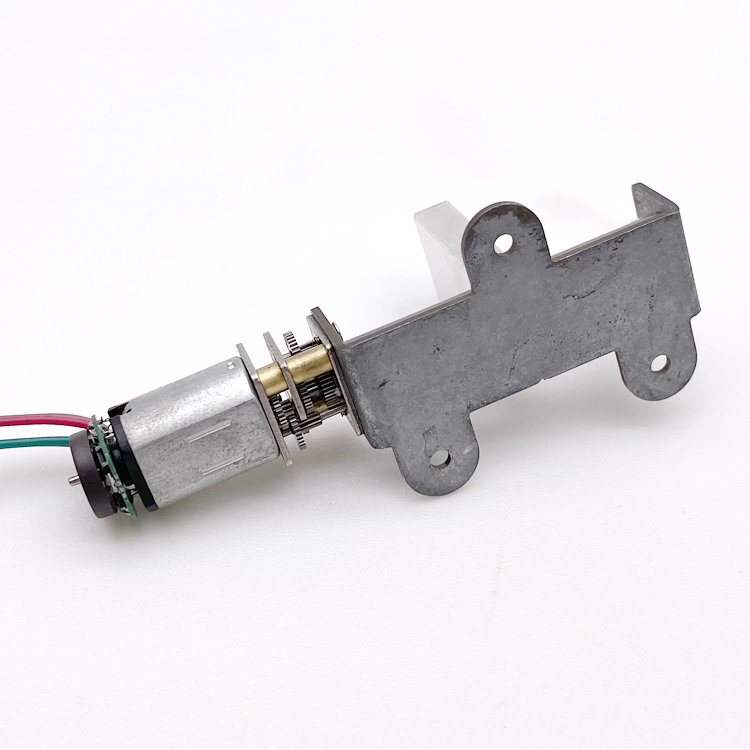

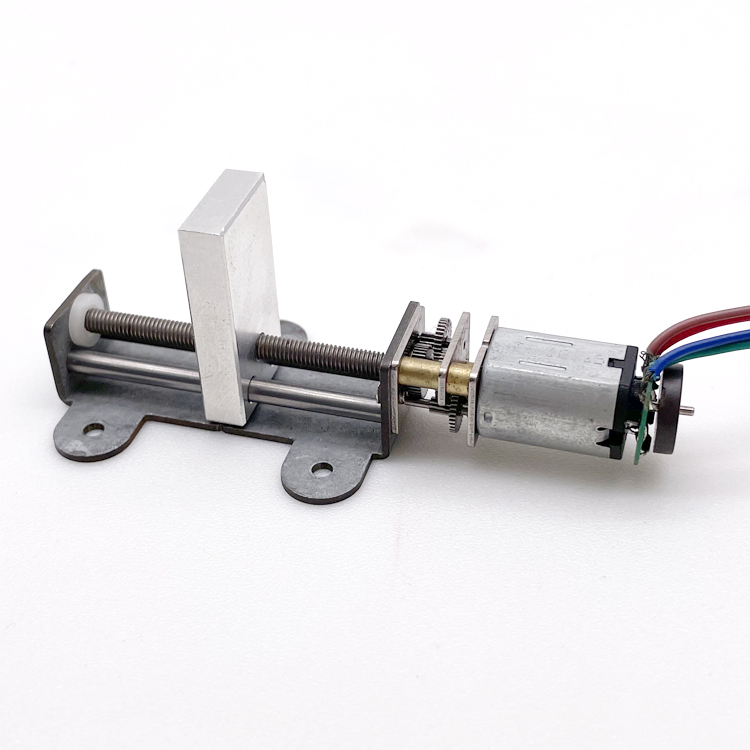

TT Motor 12V GM12-N20VA Electric Spur Gear Motor 1000 Ratio High Torque Gearbox Motor for B2B Purchase Worldwide

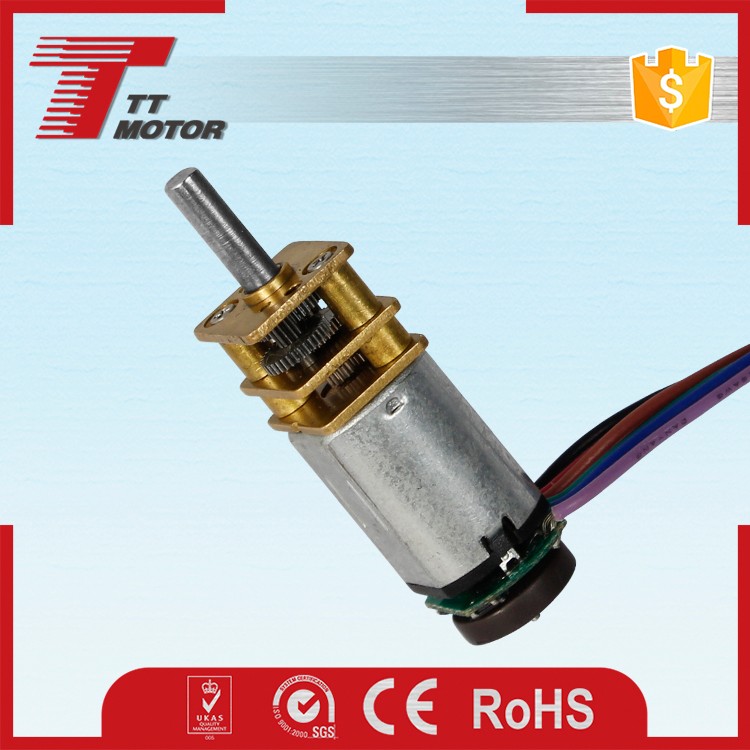

3v dc mini gear motor 12mm electric motor with encoder

Main Features

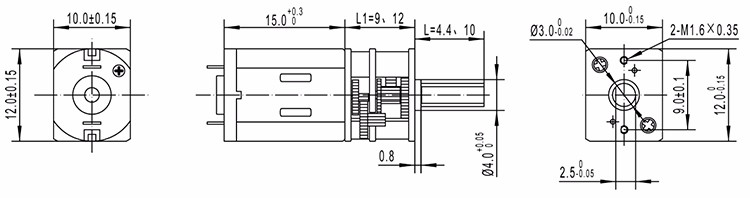

12*10 mm gearbox plus N20 & N30 permanent magnet dc motor
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.1Nm torque and more reliable
Suitable to small diameter, low noise and big torque application

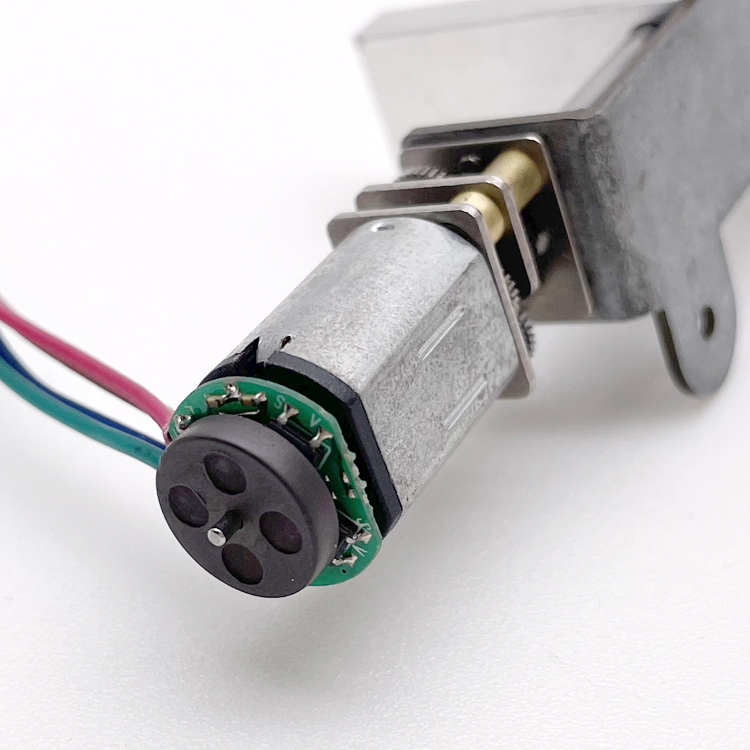

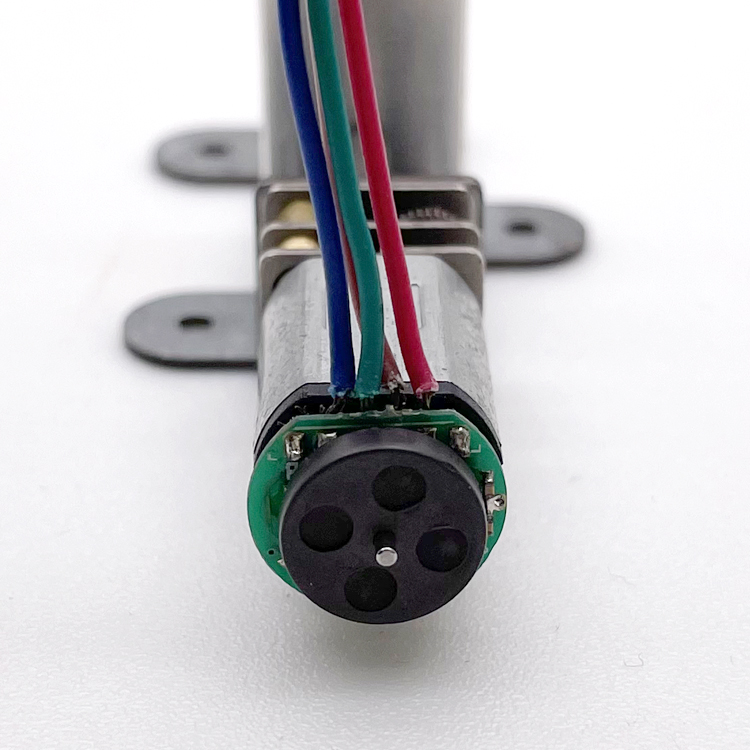

DC Gear motors can match encoder, 3ppr
Reduction ratios: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000

Motor Specifications

Model: Motor GM12-N20VA
TFF-N20VA-13110	Rated voltage: 2.4V DC	Rated speed: 12000r/min	Output power: 0.31W
	No-load speed: 14800r/min	Rated torque: 2.5g.cm	Stall torque: 13g/cm
	No-load current: 60mA	Rated current: 200mA	Stall current: 1.20A
TFF-N20VA-09220	Rated voltage: 5V DC	Rated speed: 12200r/min	Output power: 0.31W
	No-load speed: 15000r/min	Rated torque: 2.5g.cm	Stall torque: 13g/cm
	No-load current: 30mA	Rated current: 120mA	Stall current: 0.6A
TFF-N20VA-05430	Rated voltage: 12V DC	Rated speed: 12500r/min	Output power: 0.35W
	No-load speed: 16000r/min	Rated torque: 3.0g.cm	Stall torque: 13g/cm
	No-load current: 15mA	Rated current: 60mA	Stall current: 0.25A

Gearbox Reduction Ratios Performance

GM12-N20VA-13110-EN

Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1450	470	285	145	96	69	58	50	38
Rated speed rpm	1200	400	240	120	80	57	48	40	31
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max.momentary tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-09220-EN

Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1480	490	290	150	98	70	60	50	38
Rated speed rpm	1220	405	245	122	81	57	48	40	31
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max.momentary tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-05430-EN

Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1550	530	310	160	110	78	60	55	43
Rated speed rpm	1100	400	250	125	83	60	50	42	33
Rated torque kg.cm	0.02	0.05	0.08	0.18	0.27	0.37	0.45	0.5	0.5
Max.momentary tolerance torque kg.cm	0.1	0.2	0.4	0.8	1.1	1.5	1.6	1.9	2.5

Product Application

These micro dc gear motors are highly suitable for space-limited, low-noise, and high-torque applications. Typical applications include:

Automatic door operators
Automatic energy-saving bath systems
Electrically controlled valves
Oxygen machines & optical equipment
Automatic cordless power tools
Professional lighting systems

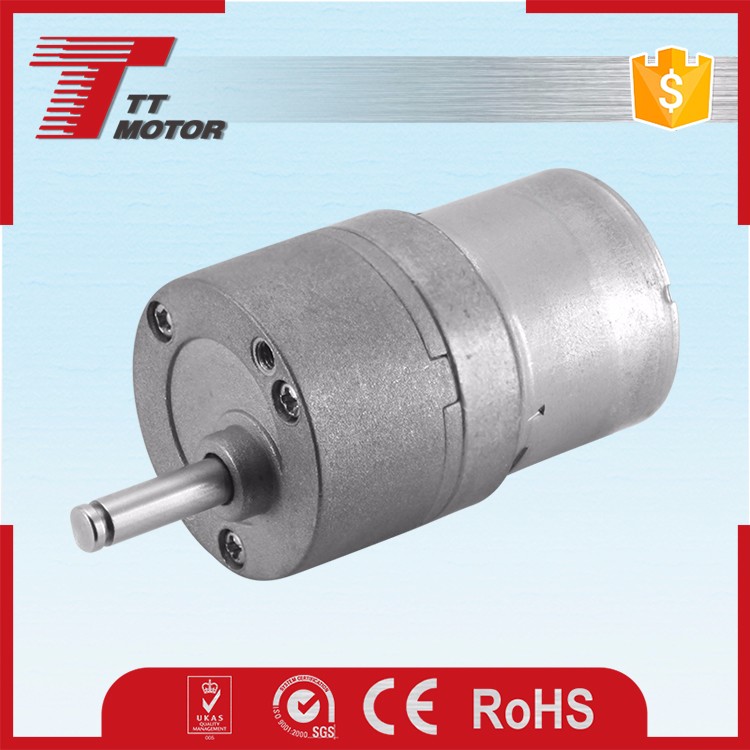

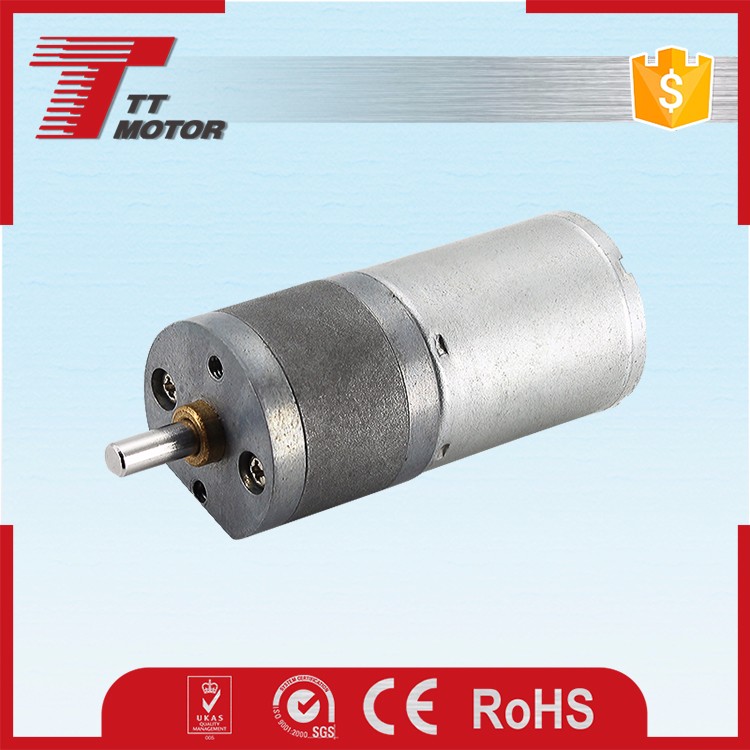

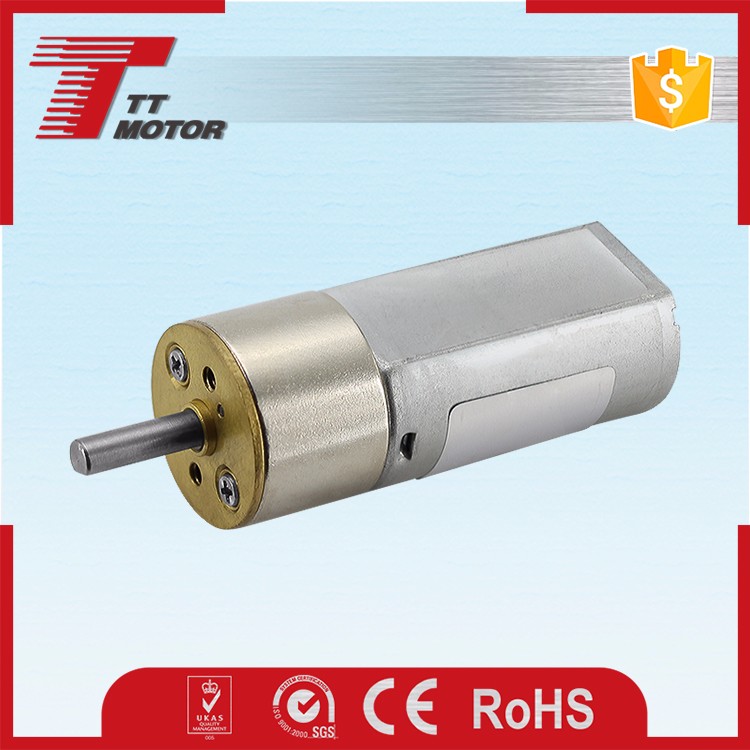

Related Products

Packing & Delivery

Packaging: Single carton packing, 500 pieces per box.

Shipping Options & Estimated Delivery Times:

DHL: 3-5 working days
UPS: 5-7 working days
TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
China Post: Delivery time depends on the destination country
Sea Freight: Delivery time depends on the destination country

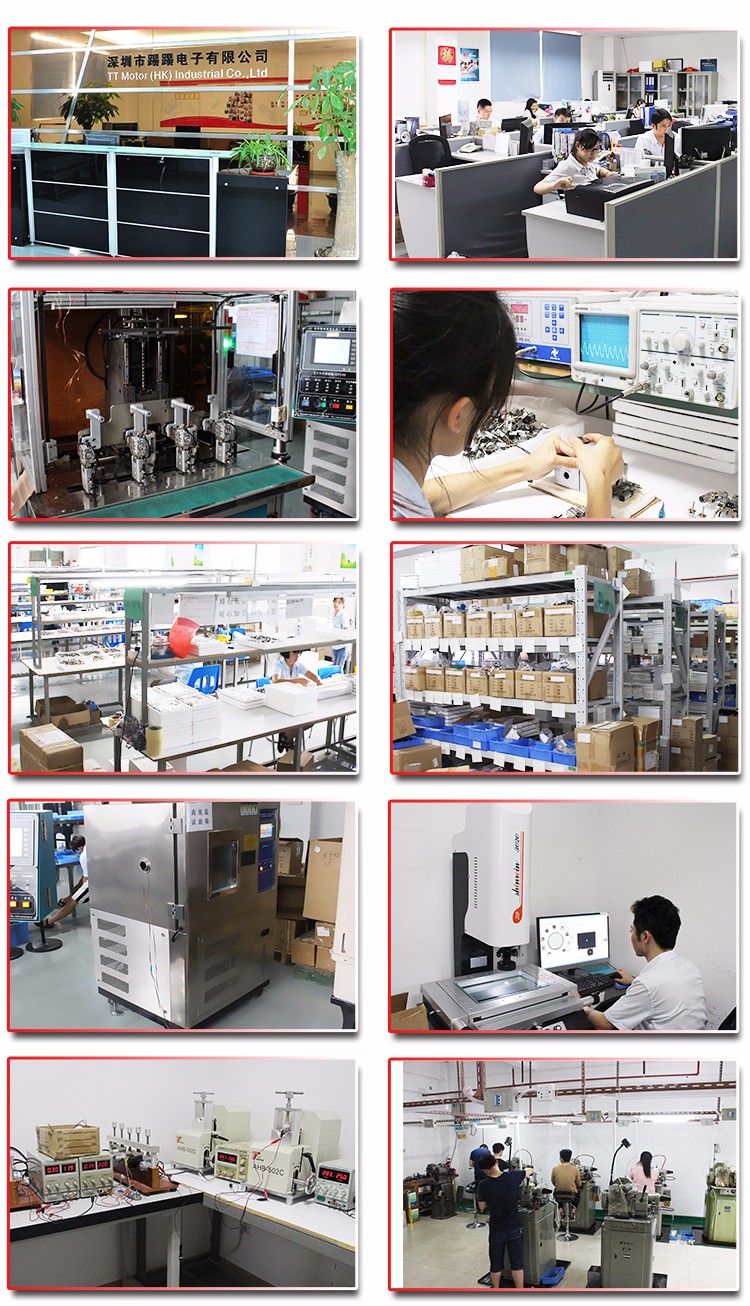

Production & Quality Standards

Frequently Asked Questions

How can I place an order for these micro gear motors?

Send us an inquiry with your detailed requirements. We will provide a formal quotation, negotiate details, confirm samples, sign the contract, and initiate mass production upon receipt of the deposit.

Are sample orders available?

Yes, sample orders are available. Once the sample fee is received, it will be refunded to you when you place a formal bulk order.

What shipping methods are supported?

We support shipping via DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. Other shipping methods can be arranged upon request.

What is the production and delivery lead time?

The exact delivery time depends on your order quantity. Production typically takes 15 to 25 working days.

What should I do if my package has missing products?

Please reach out to the support team immediately. We will confirm your order details and package contents to resolve the issue as quickly as possible.

How is the payment confirmed?

We accept payments via T/T and PayPal. Other payment options can be negotiated. We accept a 30% to 50% deposit, with the remaining balance due prior to shipping.
